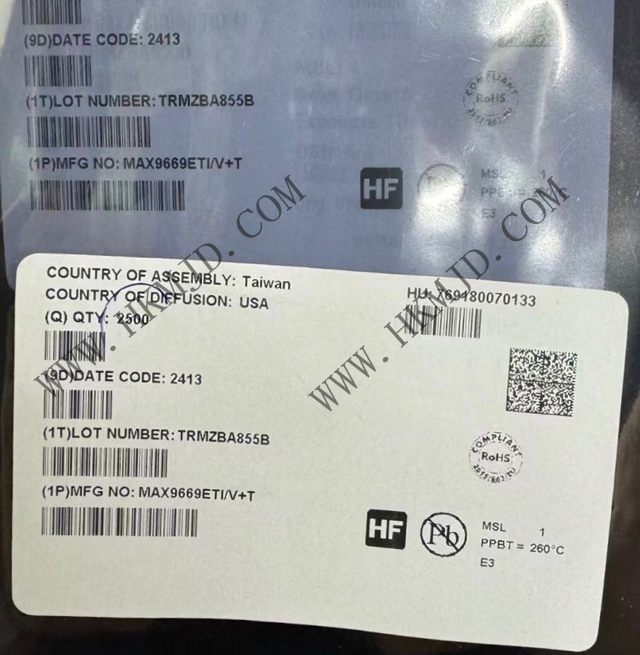

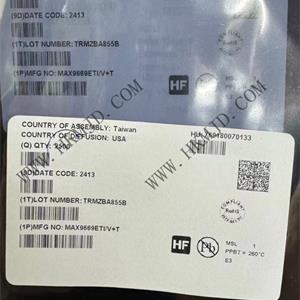

For picture reference, please see the specifications
< >

Commodity Model:MAX9669ETI

Trade Name:LCD Gamma Buffer

Brand:Maxim

Particular Year:24+

Package:TQFN-28

Delivery Date:New and Original

Stock: 20000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Maxim
Model
MAX9669ETI
Package
TQFN-28
Describe
LCD Gamma Buffer 10-Bit Prog Gamma Reference System

Product Description

The MAX9669ETI outputs 16 reference voltages for gamma correction of TFT LCD displays and one voltage reference for VCOM. each gamma reference has a 10-bit digital/analog converter (DAC) and corresponding buffer to ensure stable system operation. the VCOM reference voltage has its own 10-bit DAC and amplifier to ensure stable voltages are maintained during critical levels and stencil display. The MAX9669ETI features integrated multiple-times-programmable (MTP) memory for on-chip storage of gamma and VCOM values, eliminating the need for an external EEPROM.The MAX9669ETI's on-chip non-volatile memory supports up to 100 write operations.


The gamma output provides a peak transient current drive of 200mA, stabilising within 1µs, and the VCOM output provides a peak transient current drive of 600mA, also stabilising within 1µs. The analogue supply voltage range is between 9V and 20V and the digital supply voltage range is between 2.7V and 3.6V.


Gamma and VCOM values are programmed into registers via the I²C interface.


MAX9669ETI Features

16-way gamma calibration, 10-bit resolution

VCOM driver

Integrated MTP memory

Programmable VCOM threshold

Gamma channel provides 200mA peak current

VCOM channel delivers 600mA peak current

1µs build-up time


MAX9669ETI Applications

TFT-LCD

Associated Products

Model

Brand

Package

Quantity

Describe

BUF16821AIPWPRQ1

TI

HTSSOP-28

4000

LCD Gamma Buffer 16-Channel Buffer AU TOMOTIVE
