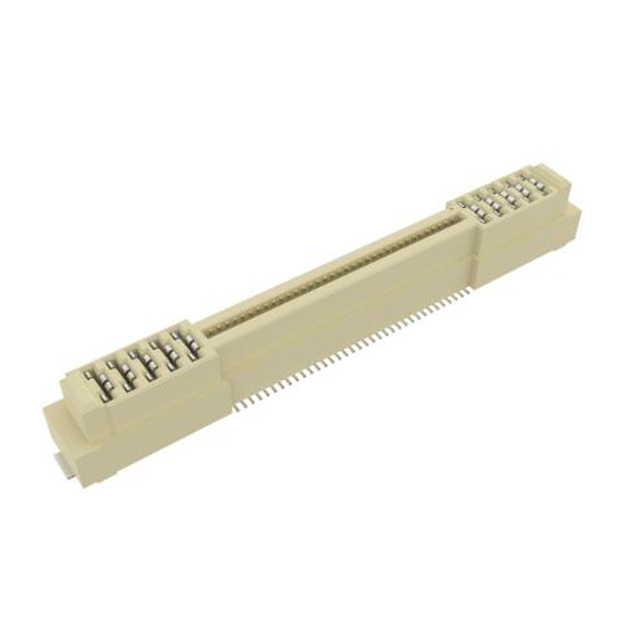

10159559-A70221RLF is a ComboStak® Compact Hybrid (Signal and Power) Connector.The ComboStak® connector incorporates the existing BergStak® 0.8 mm pitch signal pins with 2.00 mm pitch blade power terminals.

Basic Information:

Model: 10159559-A70221RLF

Package: 80POS

Type: Board-to-Board Connector

Product Details: ComboStak® Receptacle 5P 70S 5P

# of power contacts: 10

# of Signalling Contacts: 70

Rated Current: 20A

Durability (mating cycles): 200

Mating Height: 11

Contact Material: Copper Alloy

Housing material: LCP

Plated contact area: 0.2μm (8μin) gold plated with nickel underlayer

Resistance (contact): max. 1mΩ (initial), max. 2mΩ (after test)

Rated voltage: 100V DC

Operating temperature range: -40°C to +125°C

10159559-A70221RLF Product Features:

High current-carrying capacity in a miniaturised design

Current-carrying capacity up to 20A per power terminal

Available with 2 to 10 blade power terminals with 2.0 mm spacing

Available with 6 to 140 signal pins at 0.8 mm spacing

Reliable 4-contact power contact design

Signal speed performance up to 12Gb/s

5 mm to 20 mm stack height (in 1.0 mm increments)

Supports auto-alignment for blind insertion
