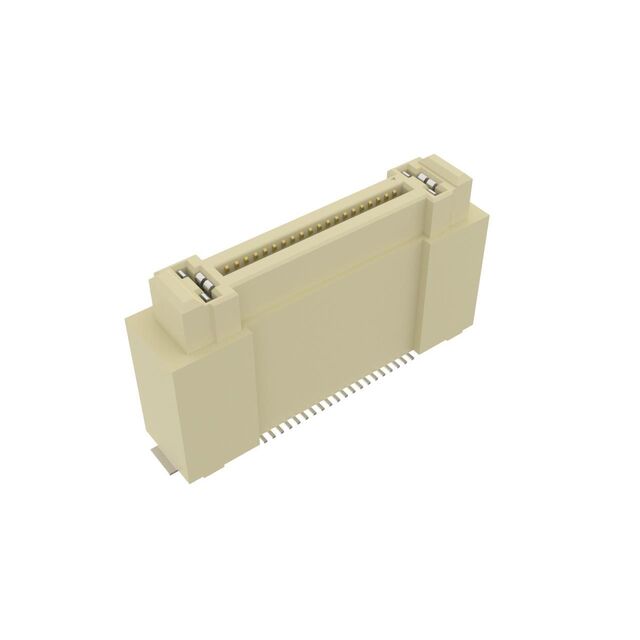

10159559-240442RLF: 42POS, ComboStak® 0.80 mm Board-to-Board Connector

Model: 10159559-240442RLF

Package: 42POS

Type: Board-to-Board Connector

Overview: ComboStak® Receptacle 1P 40S 1P

ComboStak® is a compact hybrid (signal and power) connector.The ComboStak® connector combines the existing BergStak® 0.8 mm pitch signal pins with 2.00 mm pitch blade power terminals.

- High Current Carrying Capacity in a Miniaturised Design

- Current-carrying capacity of up to 20A per power terminal

- Available with 2 to 10 blade power terminals with 2.0 mm pitch

- Available with 6 to 140 signal pins at 0.8 mm spacing

- Reliable 4-contact power contact design

- Signal speed performance up to 12Gb/s

- 5 mm to 20 mm stack height (in 1.0 mm increments)

- Supports auto-alignment for blind insertion

- Meets USCAR-2 V2 shock and vibration requirements

10159559-240442RLF Specifications:

Series: ComboStak®

Connector Type: Receptacle

Style: Board to Board

Number of Pins: 42 (40 + 2 Power)

Number of Pin Positions Loaded: All

Pitch - Mating: 0.031’ (0.80mm)

Number of Rows: 2

Mounting Type: Surface Mount

End Connections: Solder

Fastening Type: Push-Pull

Contact Finish - Mating: Gold or Gold, GXT™

Contact Finish Thickness - Mating: 29.5µin (0.75µm)

Insulation Height: 0.642’ (16.30mm)

Operating Temperature: -25°C ~ 125°C

Contact Finish - Post: Gold Plated

Contact Stack Height: 17mm, 18mm, 19mm, 20mm

Rated Current (Amps): 20A

Rated Voltage: 100VDC
