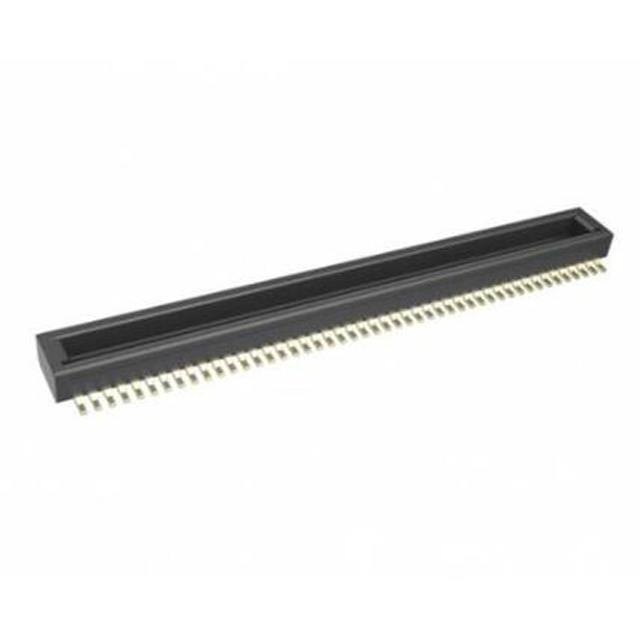

Amphenol Board-to-Board Connectors (10164228-0901A1RLF) BergStak® 0.40 mm, 90 Pos, Header, 1.5 mm and 4 mm Stack Height

Basic Information:

Model: 10164228-0901A1RLF

Package: 90POS

Type: High Speed Board-to-Board Connector

10164228-0901A1RLF Specifications:

# of contacts: 90

Mating height: 1.50 mm;4.00 mm

Contact material: copper alloy

Shell material: LCP

Rated voltage: 30 V AC

Operating temperature range: -40°C to +125°C

Impedance (insulation): 50 MΩ min

Impedance (contacts): 90mΩ max

The Amphenol BergStak® 0.40 mm connector is a compact board-to-board connector with a pitch of 0.40 mm and stacking heights of 1.5 mm and 4.0 mm with up to 10 to 100 positions. The connectors feature contact locking and are equipped with vibration-damping ribs on the housing, making them ideal for high-vibration applications.The BergStak® 0.40 mm connectors support signal rates up to 16 Gb/s and can be soldered to FPCs for highly flexible board-to-board connections.
