Trade Name:Board-to-Board Connectors
Brand:Amphenol
Particular Year:23+
Package:10POS
Delivery Date:New and Original
Stock: 1100pcs

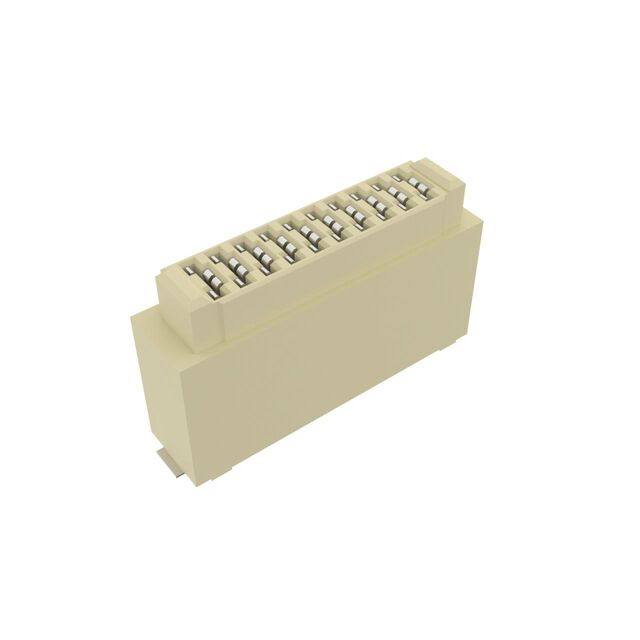

10159561-A00441RLF is Amphenol's PowerStak® series of board-to-board connectors in the Vertical Receptacle type, designed for high-current, high-density electronic devices.
10159561-A00441RLF Key Features
High Current Carrying Capacity: 20A single contact current rating, supports high power transfer, suitable for power management modules.
Compact Pitch: 2mm pin pitch optimises PCB space utilisation for compact designs.
Surface Mount (SMD): Supports automated soldering to enhance production efficiency.
High reliability: Operating temperature range of -40°C ~ +125°C, adaptable to harsh environments.
Gold-plated contacts for enhanced corrosion resistance and conductivity.
UL94 V-0 flame retardant rating to ensure safety.
10159561-A00441RLF Product Attributes
Product Category: Board-to-Board and Mezzanine Connectors
Product: PowerStak Board-to-Board Connectors
Number of Positions: 10 Position
Pitch: 0.8 mm (0.031 in)
Termination Type: Solder
Mounting Angle: Straight
Current Rating: 20 A
Voltage Rating: 100 VDC
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 125 C
Contact Plating: Gold
Contact Material: Copper
Case Material: Liquid Crystal Polymer (LCP)
Applications: Board-to-Board, Power
Flammability rating: UL 94 V-0
Insulation resistance: 1 GOhms
Mounting style: SMD/SMT
10159561-A00441RLF Typical Applications
Automotive electronics: On-Board Chargers (OBC), Battery Management Systems (BMS).
Industrial equipment: PLC controllers, high current power modules.
Data Centre: High power server power distribution.
