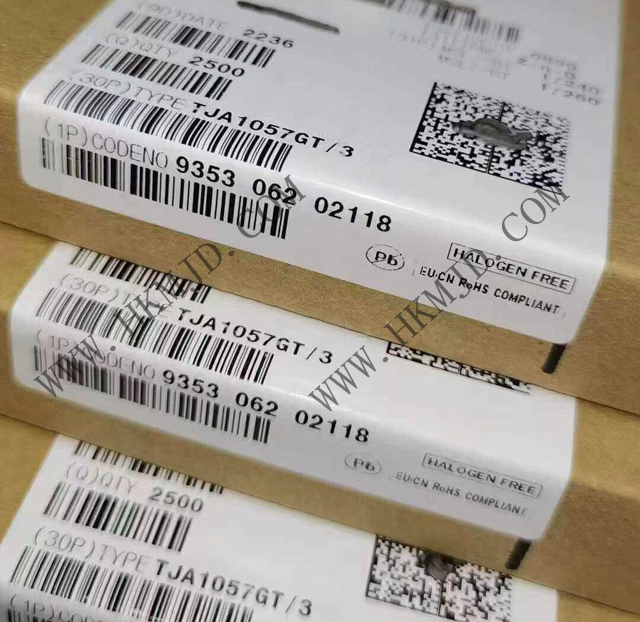

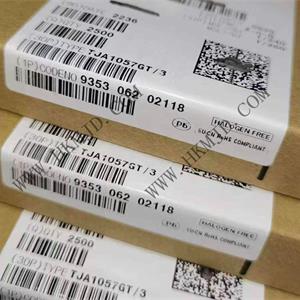

Trade Name:High Speed CAN Transceiver
Brand:NXP
Particular Year:22+
Package:SO-8
Delivery Date:New and Original
Stock: 20000pcs
The TJA1057GT is a member of the Mantis family of high-speed CAN transceivers. It provides an interface between the Controller Area Network (CAN) protocol controller and the physical two-wire CAN bus. The transceiver is dedicated to high-speed CAN applications in the automotive industry, providing the ability to send and receive differential signals to and from the CAN protocol controller (in the microcontroller).
The TJA1057GT introduces a feature set optimised for use in 12V automotive applications, with significant improvements over NXP's first and second generation CAN transceivers, such as the TJA1050, and better electromagnetic compatibility (EMC) performance.
The TJA1057GT also exhibits the ideal passive performance of the CAN bus when disconnected from power.
General Features (TJA1057GT)
Fully compliant with ISO11898-2:2016, SAEJ2284-1 to SAEJ2284-5 and SAEJ1939-14 standards
Optimised for use in 12V automotive systems
Low Electromagnetic Emission (EME) and high Electromagnetic Compatibility (EMI) capabilities, meeting formulated EMC standards such as IEC62228-3 and SAEJ2962-2.
AEC-Q100 certified
Deep green products (halogen-free and compliant with Restriction of Hazardous Substances (RoHS) specifications)
The TJA1057B and TJA1057C models have shorter propagation delays and support larger network topologies.
Models with VIO pins enable direct connection of 3.3V to 5V microcontrollers. Models without a VIO pin can connect to 3.3V and 5V powered microcontrollers as long as the microcontroller I/O tolerance voltage is 5V.
Predictable Fail-Stop Operation
Functional operation is predictable under all power conditions
Transceiver will disengage from the bus at power failure (zero load)
Send data (TXD)-based timeout function
Internal bias on TXD and S input pins
Protection
High ESD handling of bus pins (8kV IEC and HBM)
Transient protection on bus pins in automotive applications
Undervoltage detection on pins VCC and VIO
Thermal protection
Product Attributes (TJA1057GT)
Product Category: CAN Interface ICs
Family: TJA1057
Type: High Speed
Mounting Style: SMD/SMT
Package / Case: SOIC-8
Data Rate: 5 Mb/s
Number of Drivers: 1 Driver
Number of Receivers: 1 Receiver
Supply Voltage - Min: 4.75 V
Supply Voltage - Max: 5.25 V
Minimum operating temperature: - 40 C
Maximum operating temperature: + 150 C
Operating supply current: 80 mA
ESD protection: 8 kV
