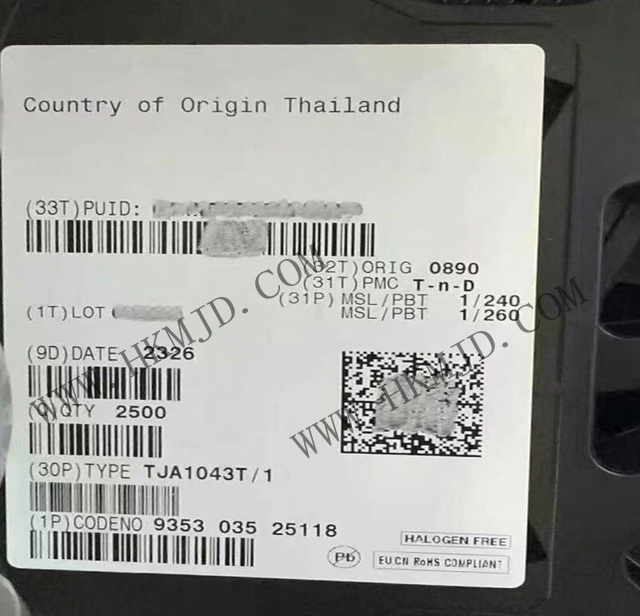

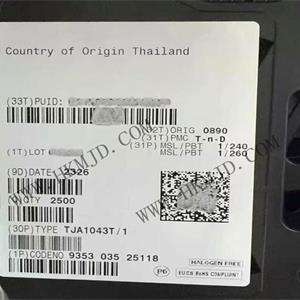

For picture reference, please see the specifications
< >

Commodity Model:TJA1043T

Trade Name:High Speed CAN Transceiver

Brand:NXP

Particular Year:23+

Package:SOP-14

Delivery Date:New and Original

Stock: 40000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
NXP
Model
TJA1043T
Package
SOP-14
Describe
High-speed CAN transceiver with standby and sleep modes

Product Description

The TJA1043T is a high-speed CAN transceiver that provides an interface between a Controller Area Network (CAN) protocol controller and a physical two-wire CAN bus. Built for high-speed CAN applications in the automotive industry, the transceiver provides the ability to send and receive differential signals to and from the CAN protocol controller (in the microcontroller).


The TJA1043T is NXP Semiconductors' third-generation high-speed CAN transceiver and offers significant improvements over first- and second-generation devices such as the TJA1041A. It improves electromagnetic compatibility (EMC) and electrostatic discharge (ESD) performance with extremely low power consumption and passive performance when the supply voltage is off. Advanced features include:

Low-power power management controls power to the entire node with both local and remote wake-up support and wake-up source identification

Multiple protection and diagnostic features, including bus line short detection and battery connection detection

Direct connection to microcontrollers with supply voltages from 3V to 5V.


TJA1043T Product Attributes

Type: High Speed CAN Transceiver

Mounting Style: SMD/SMT

Package / Case: SOIC-14

Data Rate: 1 Mb/s

Number of Drivers: 1 Driver

Number of Receivers: 1 Receiver

Supply Voltage - Min: 4.5 V

Supply Voltage - Max: 5.5 V

Minimum operating temperature: - 40 C

Maximum operating temperature: + 125 C

Operating supply current: 48 mA

ESD protection: 8 kV

Operating supply voltage: 4.5 V to 5.5 V


TJA1043T General characteristics

Fully compliant with ISO11898-2:2003 and ISO11898-5:2007 standards.

Reliable communication with CAN FD fast phase even at data rates up to 5 Mbit/s with loop delay symmetrical timing

Suitable for 12V and 24V systems

Low electromagnetic emissions (EME) and high electromagnetic immunity (EMI)

VIO input allows direct connection of 3V and 5V microcontrollers

SPLIT voltage output for stabilising implicit bus levels

Listen-only mode for node diagnostics and fault containment

Available in SO14 and HVSON14 packages

Pinless HVSON14 package (3.0mmx4.5mm) with enhanced automatic optical inspection (AOI) capability

AEC-Q100 certified

‘Deep Green’ products (halogen-free and RoHS compliant)
