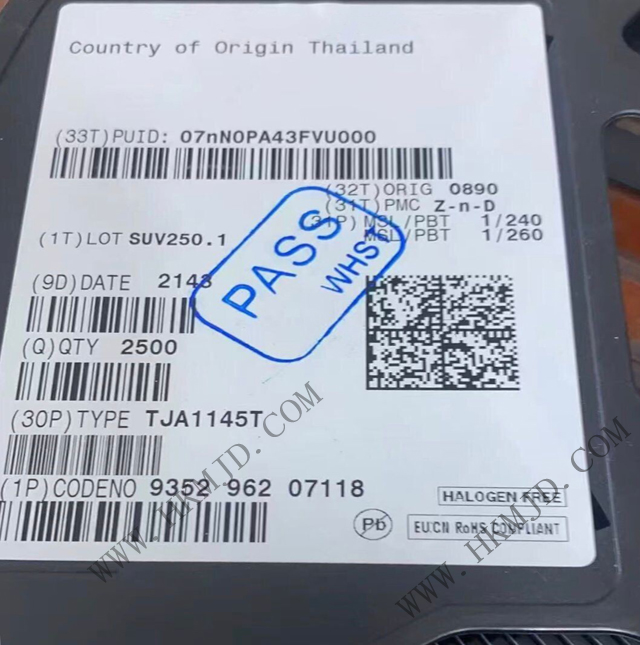

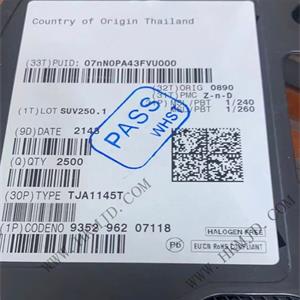

For picture reference, please see the specifications
< >

Commodity Model:TJA1145T

Trade Name:High Speed CAN Transceiver

Brand:NXP

Particular Year:21+

Package:SO14

Delivery Date:New and Original

Stock: 7500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
NXP
Model
TJA1145T
Package
SO14
Describe
High-speed CAN transceivers for local networking

Product Description

The TJA1145T is a high-speed CAN transceiver that provides an interface between a Controller Area Network (CAN) protocol controller and a physical two-wire CAN bus. Designed specifically for high-speed CAN applications in the automotive industry, the transceiver provides the ability to send and receive differential signals to and from a CAN protocol controller (in a microcontroller).


With ultra-low power consumption in standby and sleep modes, the TJA1145T supports CAN local networking in accordance with the ISO 11898-6:2013 standard through the use of a selective wake-up function.


A dedicated implementation of the local networking feature is embedded in the TJA1145/FD products TJA1145T/FD and TJA1145TK/FD. This feature, called ‘FD-Passive’, ignores CAN FD frames while waiting for a valid wake-up frame in sleep/standby mode. This new local networking feature is a good choice if the network is to support both CAN FD and standard CAN 2.0 communication. During CAN FD communication, it allows normal CAN controllers that do not need to transmit CAN FD messages to remain in local networking sleep/standby mode without generating bus errors.


Advanced power management regulates power through the node and supports local and remote wake-up functions. the I/O levels are automatically adjusted to the controller's I/O levels, allowing the TJA1145 to be directly connected to 3.3 V-5 V microcontrollers. An SPI interface is provided for performing transceiver control and retrieving status information. The bus connection becomes a true floating connection when power is removed.


TJA1145T Features

Basic Features

Fully compliant with ISO 11898-2:2003, ISO 11898-5:2007 and ISO 11898-6:2013 standards

Timing guarantees data rates up to 2 Mbit/s

Autonomous bus bias in accordance with ISO 11898-6:2013

Optimised for in-vehicle high-speed CAN communication

TJA1145/FD products feature CAN FD frame detection so there are no false wake-ups

Designed for automotive applications

CAN bus pins provide ±8 kV Electrostatic Discharge (ESD) protection in accordance with Human Body Modelling (HBM) standards

BAT pin, WAKE pin and CAN bus pin provide ±6 kV ESD protection according to IEC 61000-4-2 standard

CAN bus pin provides ±58 V short-circuit protection

Battery and CAN bus pins are transient protected according to ISO 7637-3 standards for test pulses 1, 2a, 3a and 3b

Suitable for 12 V and 24 V systems

Available in SO14 and pinless HVSON14 packages (3 mm x 4.5 mm) with enhanced automatic optical inspection (AOI) capabilities

AEC-Q100 certified

Deep green product (halogen-free, RoHS compliant)


TJA1145T Parameters

Type: Transceiver

Protocol: CANbus

Number of drivers/receivers: 1/1

Duplex: Full version

Voltage - Supply: 4.5V ~ 5.5V

Operating Temperature: -40°C ~ 150°C

Mounting Type: Surface Mount

Package/Shell: 14-SOIC (0.154’, 3.90mm Width)

Supplier Device Package: 14-SO


TJA1145T Applications

Automotive Electronics

Automotive Radar Solutions

Driver monitoring systems (DMS) and occupant monitoring systems
