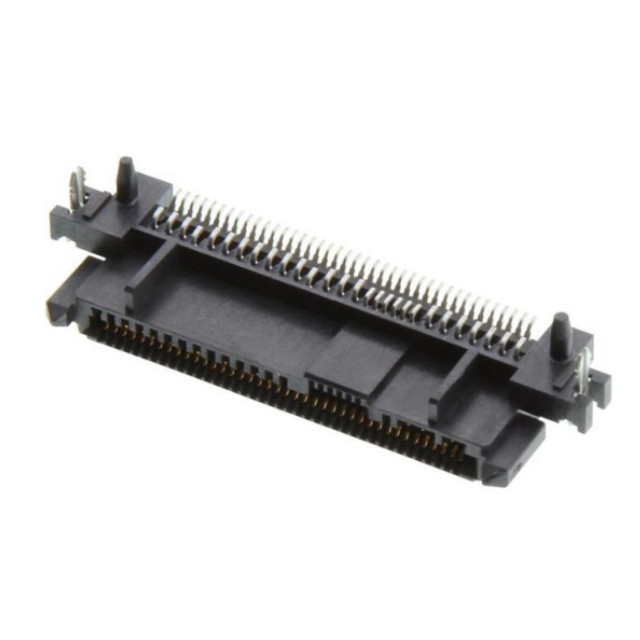

78784-0001: 68POS, I/O Connector, SAS-3/PCIe-3 Socket, Surface Mount

Basic information:

Model Number: 78784-0001

Package: 68POS

Type: I/O connector

Product Description: 1.27 mm Signal Pitch, 0.80 mm Signal Pitch, 1.27 mm Power Pitch, SAS-3/PCIe-3 Socket, Vertical, Surface Mount, With 3.20 mm Blade, 8.15 mm Height, 2.50 mm Nail Length, 2.36 mm PCB Thickness, 68 Circuits, With Cap, Embossed Tape and Reel, Lead Free.

78784-0001 Specifications:

Electrical:

Maximum current per contact: 1.5 A

Voltage-Max: 30V

Physics:

Number of circuits (max): 68

Color-Resin: Black

Number of rows: 2

Direction: Vertical

Recommended PCB thickness: 2.36 mm

Pitch-Plug-in interface: 0.80 mm, 1.27 mm

Spacing-Terminal Interface: 0.80 mm, 1.27 mm

Thinnest plating-junction: 0.762 µ m

Thinnest plating-termination: 2.540 µ m

Operating temperature range: 0 °C to + 55 °C
