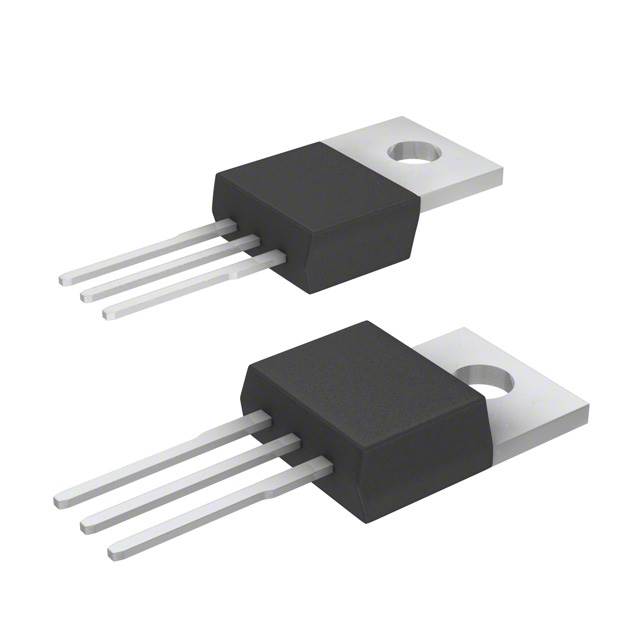

The IDP30C65D2 is a fast 2-switch 650 V, 30 A emitter controlled power silicon diode in a common-cathode configuration and TO-220 package that optimises design for more compact size, easier assembly and lower cost.

IDP30C65D2 Features

JEDEC certified for targeted applications

650VE Emitter Control Technology

Fast recovery

Simple Switching

Low reverse recovery charging

Low overheat voltage and thermal stabilisation

175°C junction operating temperature

Easy parallel connection

Lead-free plating; RoHS compliant

IDP30C65D2 Technical Data

Diode Configuration: 1 pair of common cathodes

Technology: Standard

Voltage - DC reverse (Vr) (max): 650 V

Current - Average Rectification (Io) (per diode): 15A

Voltage - Forward (Vf): 2.2 V @ 15 A at different If's

Speed: Fast Recovery = < 500ns, > 200mA (Io)

Reverse recovery time (trr): 31 ns

Current at varying Vr - Reverse Leakage: 40 µA @ 650 V

Operating Temperature - Junction: -40°C ~ 175°C

Mounting Type: Through Hole

Package/Housing: TO-220-3

Supplier Device Package: PG-TO220-3

IDP30C65D2 Applications:

Boost diodes for use in CMPFCs
