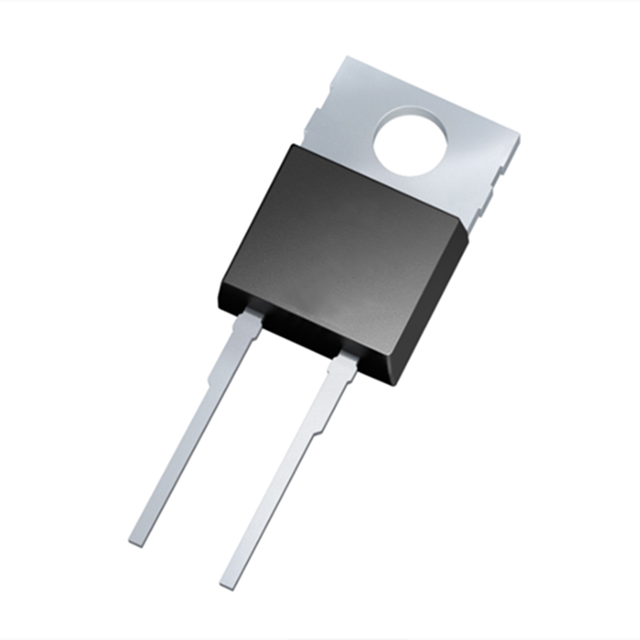

The IDP30E65D1 is A 650 V, 30 A silicon power diode in a TO-220 real2pin package. It is highly suitable for PFC topological applications, including household air conditioners, dishwashers, etc. Its main characteristics are as follows:

35V temperature-stabilized forward voltage (VF)

Extremely high flexibility - a factor in achieving final flexibility and low EMI filtering

The extremely low Irrm can provide low turn-on loss on the boost switch

Suitable for applications with switching frequencies ranging from 18 kHz to 40 kHz

Performance parameters

Technology: Standard

Voltage - DC reverse (Vr) (maximum value) : 650 V

Current - Average rectification (Io) : 60A

Voltage - Forward (Vf) at different IFs: 1.7 V @ 30 A

Speed: Fast recovery =< 500ns, > 200mA (Io)

Reverse recovery time (trr) : 64 ns

Current - reverse leakage at different VRS: 40 µA @ 650 V

Capacitance at different Vr and F times: -

Installation type: Through hole

Package/Shell: TO-220-2

Operating temperature - Junction: -40°C to 175°C

The application fields of IDP30E65D1 include:

AC/DC converter

The boost diode in the PFC stage

The freewheeling diode drives the inverter and motor driver

General-purpose inverter

Switching mode power supply
