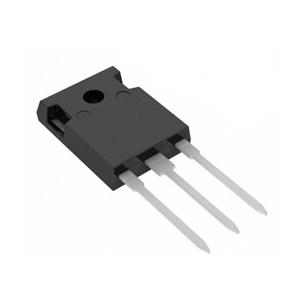

The IDW30C65D2 fast 2-switch 650 V, 30 A emitter controlled power silicon diode is available in a common-cathode configuration and TO-247 package that optimises design for more compact size, easier assembly and lower cost.

Features - IDW30C65D2

1.35 V temperature-stabilised forward voltage (VF)

Highest softness factor for very high softness and low EMI filtering capability

Lowest Irrm for reduced turn-on losses in boost switches

Suitable for switching applications from 18 kHz to 40 kHz

Specifications - IDW30C65D2

Diode Configuration: 1 pair of common cathodes

Technology: Standard

Voltage - DC reverse (Vr) (maximum): 650 V

Current - Average Rectification (Io) (per diode): 15A

Voltage - Forward (Vf): 2.2 V @ 15 A at different If's

Speed: Fast Recovery = < 500ns, > 200mA (Io)

Reverse Recovery Time (trr): 32 ns

Current at varying Vr - Reverse Leakage: 40 µA @ 650 V

Operating Temperature - Junction: -40°C ~ 175°C

Mounting Type: Through Hole

Package/Housing: TO-247-3

Supplier Device Package: PG-TO247-3-1

Potential Applications - IDW30C65D2

Telecommunications

Servers

PC power supplies

Uninterruptible power supplies

Welding

Adaptor

Air Conditioning

Household Appliances

AC-DC Power Supplies
