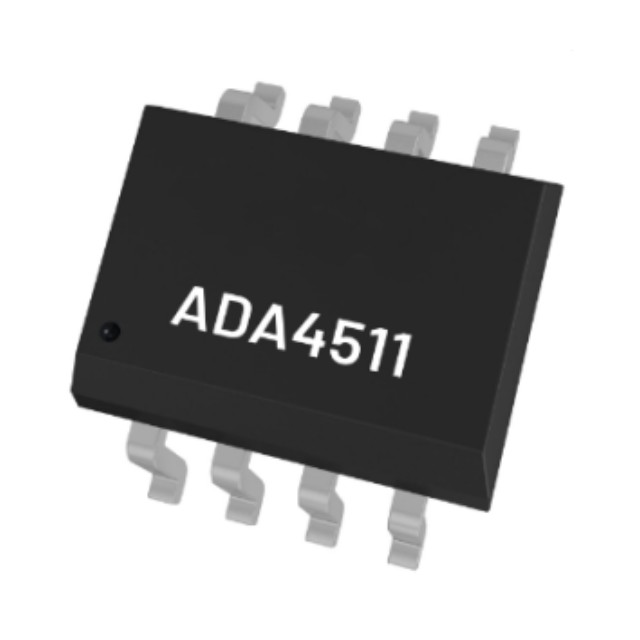

ADA4511-2ARZ is a dual-channel, 40 V, high precision, low-input bias current, low-offset voltage, low-offset voltage drift, low noise, rail-to-rail input and output operational amplifier (op amp) that can be used at any point of the signal chain, which includes sensing, conditioning, and output drive. Through trimming, the ADA4511-2 achieves low offset drift (±0.4 μV/°C typical, ±2 μV/°C maximum) and low offset voltage (±25 μV typical, ±75 μV maximum).

Features Of ADA4511-2ARZ

Low-offset voltage drift: ±2 μV/°C maximum

Low-offset voltage: ±75 μV maximum

Low voltage noise: 1 μV p-p from 0.1 Hz to 10 Hz typical

Low voltage noise density: 5 nV/√Hz typical at f = 1 kHz

High common-mode rejection: 140 dB typical

Low input bias current: ±10 pA maximum

Wide gain bandwidth product: 10.4 MHz typical

High slew rate: 19 V/μs typical

Low THD: −134 dB at f = 1 kHz

Low quiescent supply current: 1.45 mA per amplifier typical

Wide supply voltage operation: 6 V to 40 V, ±3 V to ±20 V

Integrated EMI filter

Multiplexer compatible inputs

Rail-to-rail high impedance inputs: differential and common-mode

Fast settling time

Rail-to-rail output

No phase reversal

Heavy capacitive load drive capability: 1 nF

Wide specified temperature range: −40°C to +125°C

Available in 8-lead standard small outline package (SOIC_N)

Applications Of ADA4511-2ARZ

Data acquisition systems

Multiplexed input signal chains

Industrial automation

Medical instruments

Electronic test and measurement

Precision current measurement

Photodiode amplifiers
