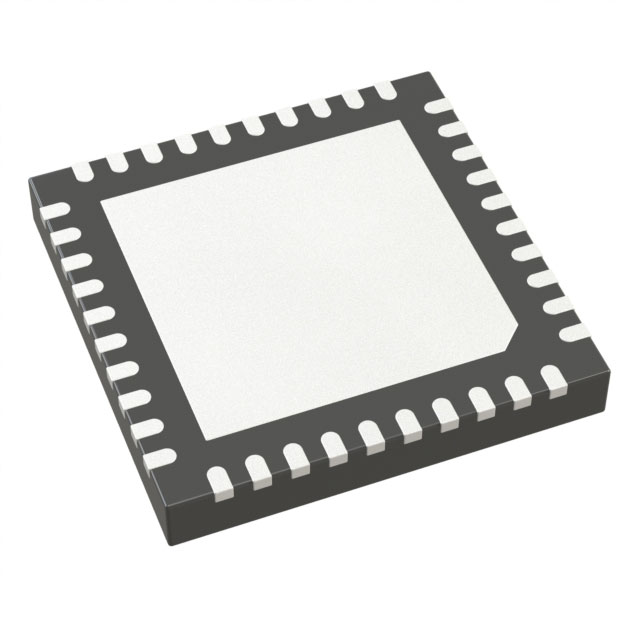

The ADCLK846BCPZ is a 1.2 GHz/250 MHz, LVDS/CMOS, fanout buffer optimized for low jitter and low power operation. Possible configurations range from 6 LVDS to 12 CMOS outputs, including combinations of LVDS and CMOS outputs. Two control lines are used to determine whether fixed blocks of outputs are LVDS or CMOS outputs.

FEATURES

Selectable LVDS/CMOS outputs

Up to 6 LVDS (1.2 GHz) or 12 CMOS (250 MHz) outputs

<16 mW per channel (100 MHz operation)

54 fs integrated jitter (12 kHz to 20 MHz)

100 fs additive broadband jitter

2.0 ns propagation delay (LVDS)

135 ps output rise/fall (LVDS)

65 ps output-to-output skew (LVDS)

Sleep mode

Pin-programmable control

1.8 V power supply

APPLICATIONS

Low jitter clock distribution

Clock and data signal restoration

Level translation

Wireless communications

Wired communications

Medical and industrial imaging

ATE and high performance instrumentation
