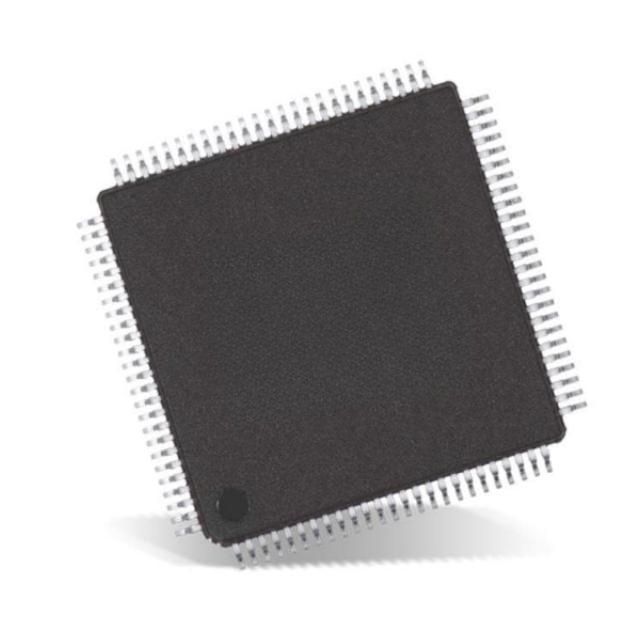

The LPC5528JBD100Y microcontrollers (MCUs) offer the perfect balance of security, performance efficiency and system integration for the general embedded and industrial IoT markets.The LPC5528JBD100Y combines the high-performance efficiency of the Cortex-M33 core with multiple high-speed interfaces, integrated power management ICs and rich analogue integration. These devices are part of the LPC5500 MCU family, featuring cost-effective 40nm NVM process technology with pin, software and peripheral compatibility for ease of use and reduced time-to-market. The family is supported by NXP's comprehensive support package, which includes MCUXpresso software and tools, as well as low-cost development boards.

The LPC5528JBD100Y offers a wide range of connectivity options, including high-speed USB with on-chip PHY, high-speed SPI, SDIO and the popular FlexComm interface (configurable as SPI/I2C/I2S, UART). Security features include SRAM Physical Unclonable Function (PUF) for trusted rooting and configuration, hardware symmetric encryption/decryption engine, secure debugging, and PRINCE engine for real-time execution of encrypted images.

Product Attributes
Core Processor: ARM® Cortex®-M33
Core specification: 32-bit
Speed: 150MHz
Connectivity: Flexcomm, I²C, SDIO, SPI, UART/USART, USB
Peripherals: Undervoltage Detect/Reset, DMA, I²S, POR, PWM, RNG, WDT
Number of I/O: 64
Program memory capacity: 512KB (512K x 8)
Programme memory type: Flash
EEPROM capacity: -
RAM Size: 256K x 8
Voltage - Supply (Vcc/Vdd): 1.8V ~ 3.6V
Data Converter: A/D 10x16b
Oscillator Type: Internal
Operating Temperature: -40°C ~ 105°C (TA)
Mounting Type: Surface Mount
Package/Housing: 100-LQFP Exposed Pad
Supplier Device Package: 100-HLQFP (14x14)

Applications
• Consumer Electronics
• Diagnostic equipment
• Building Control and Automation
• Security applications
• Industrial Internet of Things
• General Embedded
