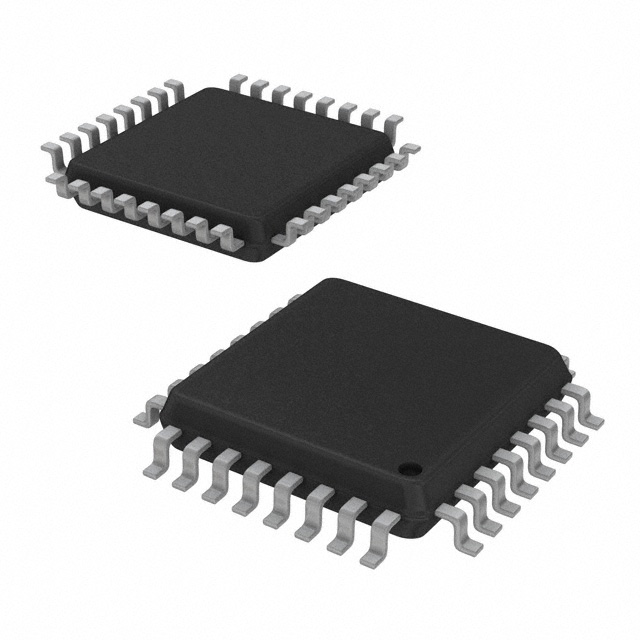

The S9S08AW16AE0CLC is a member of the low-cost, high-performance HCS08 family of 8-bit microcontrollers (MCUs). All MCUs in this family feature the enhanced S08 core and are available in a variety of modules, memory sizes, memories, and package types.The S9S08AW16AE0CLC microcontrollers are used in both industrial control and automotive industries.

Product Attributes

Manufacturer: NXP

Product Category: 8-bit Microcontrollers -MCUs

Family: S08AW

Mounting Style: SMD/SMT

Package / Case: LQFP-32

Core: S08

Programme memory size: 16 kB

Data bus width: 8 bit

ADC resolution: 10 bit

Maximum clock frequency: 40 MHz

Number of inputs/outputs: 22 I/Os

Data RAM size: 1 kB

Supply voltage - min: 2.7 V

Supply voltage - max: 5.5 V

Minimum operating temperature: - 40 C

Maximum operating temperature: + 85 C

Qualification: AEC-Q100

Analogue supply voltage: 2.7 V to 5.5 V

Data Ram Type: RAM

Interface Type: I2C, SCI, SPI

Number of ADC Channels: 6 Channel

Product: MCU

Programme Memory Type: Flash
