The LPC5506JHI48J is an ARM Cortex-M33 based microcontroller for embedded applications. The devices include the CASPER Crypto engine, up to 256 KB of on-chip Flash, up to 96 KB of on-chip SRAM, the PRINCE module for on-the-fly encryption/decryption of Flash, a code watchdog, CAN FD, five general-purpose timers, an SCTimer/PWM, an RTC/alarm timer, a 24-bit multirate timer (MRT), a window watchdog timer (WWDT), and an ARM Cortex-M33-based microcontroller. ), a Window Watchdog Timer (WWDT), nine flexible serial communication peripherals (configurable as USART, SPI, High-Speed SPI, I2C, or I2S interfaces), Programmable Logic Units (PLUs), a 16-bit 2. Programmable Logic Units (PLUs), a 16-bit 2.0 Msamples/sec ADC with simultaneous conversion, comparators, and temperature sensors. The ARM Cortex-M33 provides a

Product Attributes

Core Processor: ARM® Cortex®-M33

Core specification: 32-bit

Speed: 96MHz

Connectivity: CANBus, Flexcomm, I²C, SPI, UART/USART

Peripherals: Undervoltage Detect/Reset, DMA, I²S, POR, PWM, RNG, WDT

Number of I/O: 30

Program memory capacity: 256KB (256K x 8)

Programme Memory Type: Flash

EEPROM Capacity: -

RAM Size: 96K x 8

Voltage - Supply (Vcc/Vdd): 1.8V ~ 3.6V

Data Converter: A/D 7x16b SAR

Oscillator Type: External, Internal

Operating Temperature: -40°C ~ 105°C (TA)

Mounting Type: Surface Mount, Wettable Sides

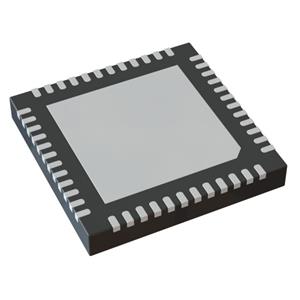

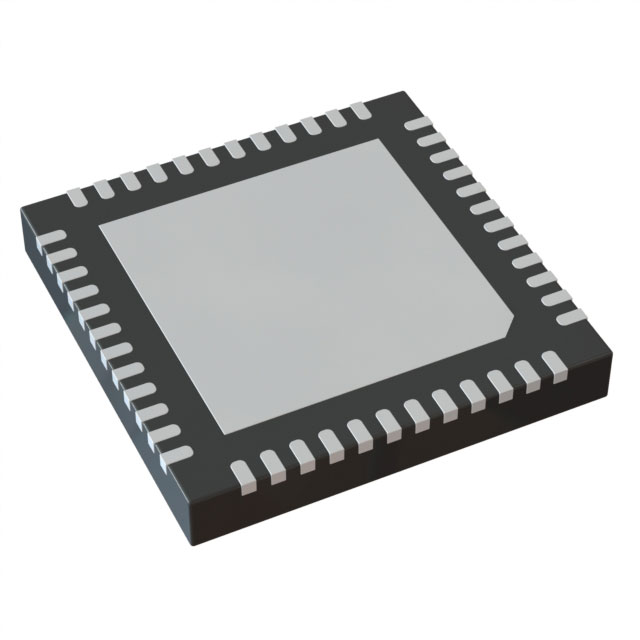

Package/Housing: 48-VFQFN Exposed Pad

Supplier Device Package: 48-HVQFN (7x7)
