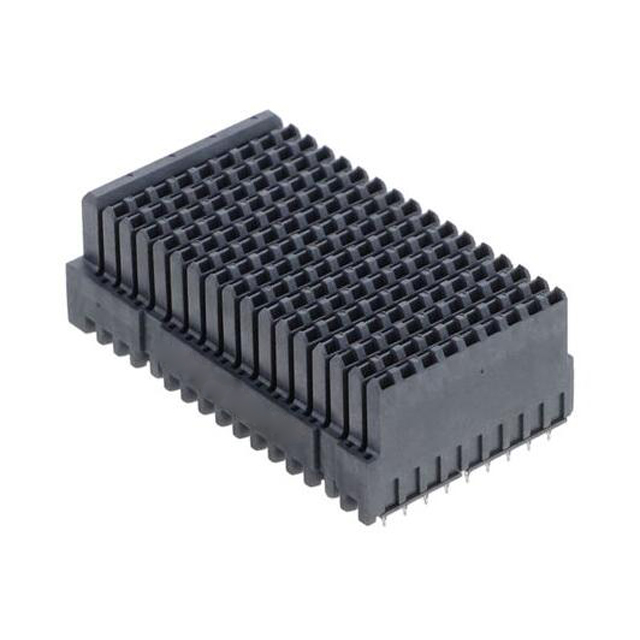

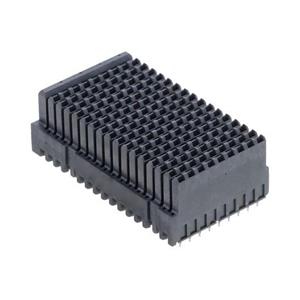

RVPX-JE216EC1: 16POS, R-VPX Evolution Backplane Connector

The R-VPX Evolution series is designed to support the latest high-speed protocols while meeting OpenVPX requirements. With data rates in excess of 16 Gb/s, these high-speed modules meet the performance requirements of the VITA 46 and VITA 47 standards and are intermateable with existing VITA 46 backplane connectors.

RVPX-JE216EC1 - Product Specification:

Series: R-VPX Evolution

Connector Application: Backplane

Connector Style: VITA 46

Number of pins: 16

Number of Pin Positions Loaded: All

Contact Finish: Gold Plated

Contact Finish Thickness: 30.0µin (0.76µm)

Current Rating (Amps): 1.5A

Operating Temperature: -55°C ~ 105°C

R-VPX Evolution Backplane Connectors - Product Features:

VITA 46 compliant for OpenVPX applications

Fully intermateable and mating with existing VITA 46 connectors

Meets and exceeds VITA 47 standards

Ruggedised 4-point contact system

Modular COTS lightweight connector system

Low insertion and extraction force connector system

Pinless backplane connector series

Supports 0.8’ bay spacing

Up to 140 signals per inch

Rated contact current 1.5 amps

Interfaces with high power modules, RF

Modules (VITA 67) and Optical Modules (VITA 66)

-55° to 125°C

Storage temperatures can be similar to operating temperatures, but storage in typical warehouse ambient temperatures is recommended
