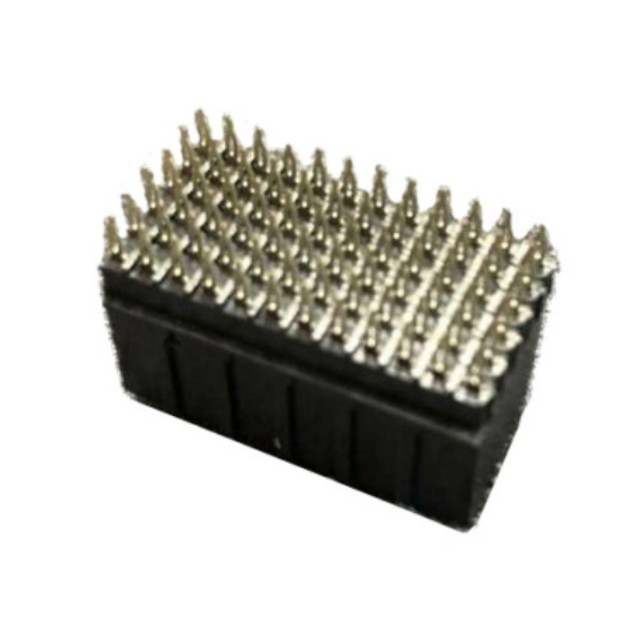

73782-7200: 144POS, High Density Metric (HDM) Backplane Connector-HDM Board-to-Board Stack Header

Description: HDM board-to-board stack header, high rise vertical, SMC, closed end option, 144 circuits, stack height 6.05 mm.

Basic information:

Model Number: 73782-7200

Series: HDM (High Density Metric) 73782

Package: 144POS

Type: Backplane Connector

Product attributes:

Maximum current per contact: 1.0 A

Data transfer rate: 1.0 Gbps

Actual signal lines (per 25 mm): 72

Voltage-Max: 100V AC

Number of circuits (max): 144

Color-Resin: Black

Number of columns: 24

Number of rows: 6

Direction: Vertical

Recommended PCB thickness: 1.40 mm

PC welding pin length: 3.50 mm

Spacing-Plug-in interface: 2.00 mm

Thinnest plating-junction: 0.762 µ m

Thinnest plating-termination: 2.540 µ m

Operating temperature range:-55 °C to + 105 °C
