Trade Name:Card Edge Connectors
Brand:Amphenol
Particular Year:25+
Package:50POS
Delivery Date:New and Original
Stock: 2000pcs

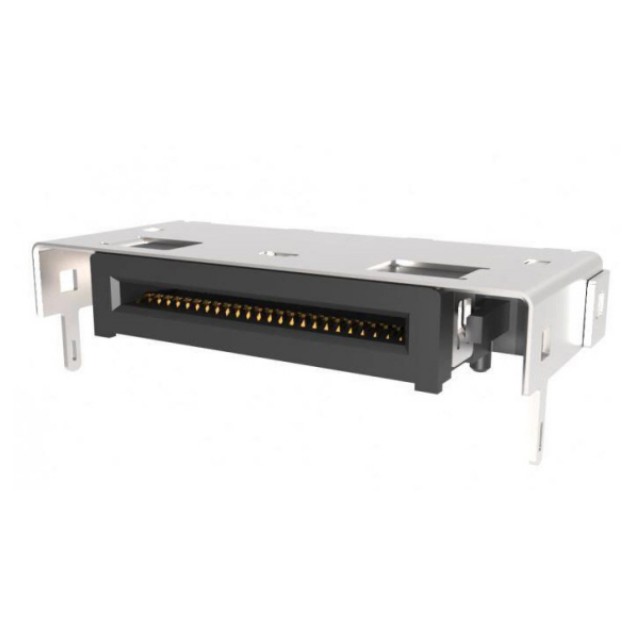

The ExtremePort Flash 0.60mm pitch connector comes with an extreme low profile design capable of transmitting high-speed signal up to 56G PAM4,and allows much greater signal path lengths, while maintaining SI performance when compared to conventional PCB routing methods.
ExtremePort Flash not only provides a SI performance ready signal transmission but also a new way of system design that is cost- effective, highly modular, scalable, and extremely easy to repair.
Feature Of G13A501213142HR
0.60mm pitch right angle configuration, with 4.50mm height for dual row
Up to 56Gb/s PAM4, over 1.0 meter transmission distance
Supports both cable and card edge applications with one identical connector
With 952 impedance and meets PCle/NVMe/SAS/SFP(+)/QSFP sepcifications
Benefits Of G13A501213142HR
Extreme low profile for extreme mechanical space limitation
Extends transmission range far more over the conventional PCB routes
Provides flexibility in system design to meet highly modular, scalable and easy-to-repair requirements
Saves system material cost, engineering and certification expenses with high succession of system design
Applications Of G13A501213142HR
Baseband
Commercial Systems
Networking
Radio Units
High-end Computing System
Server and Storage Systems
