10121506-000420CLF is Amphenol's new generation of power card edge connectors - High Power Card Edge (HPCE®) connectors for demanding applications requiring high linear current density and low power loss.

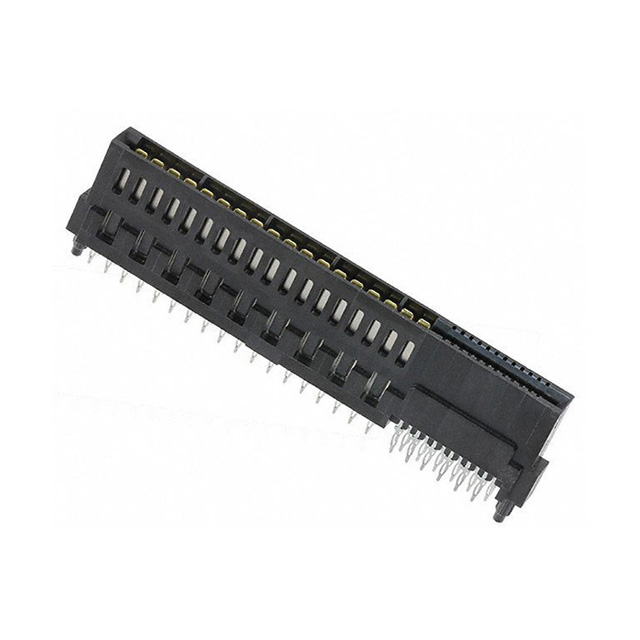

10121506-000420CLF - 20POS, High Power Card Edge (HPCE®) Connector

Basic Information:

Model: 10121506-000420CLF

Package: 20POS

Series: HPCE®

Type: High Power Card Edge (HPCE®) Connector

Card Type: Unspecified - Dual Edge

Number of Positions/Grids/Rows: 2; 10

Number of Positions: 24 (20 + 4 Power)

Card Thickness: 0.062’ (1.57mm)

Number of Rows: 2

Reads: Dual

Features: Board Lock

Mounting Type: Through Hole

End Connections: Solder

Contact Material: Copper Alloy

Contact Finish: Gold or gold, GXT™

Colour: Black

Operating Temperature: -55°C ~ 105°C

Material - Insulation: Thermoplastic

HPCE® is rated at 9A per power contact bundle (when multiple power contacts are fully energised) and has a temperature rise in still air of no more than 30°C. The innovative design minimises the footprint of the connector and the robust housing includes anti-shock safety features and polarisation to ensure correct mating.
