Trade Name:SHARC Processor
Brand:ADI
Particular Year:25+
Package:BGA-196
Delivery Date:New and original
Stock: 3000pcs

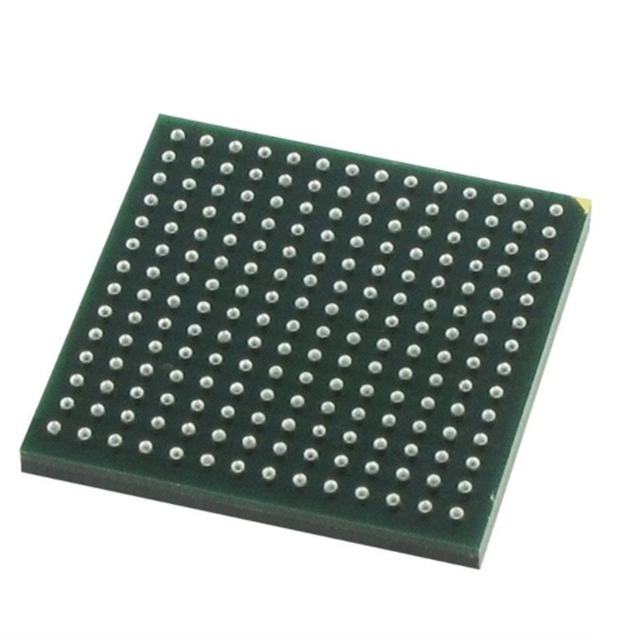

The ADSP-21479BBCZ-2A is part of ADI's fourth generation of high-performance SHARC® processors. With extremely low power consumption and high performance of 266 MHz/1596 MFLOP, it is particularly suitable for low power applications such as car audio and industrial control .
The ADSP-21479BBCZ-2A processor incorporates a low-power floating point DSP that offers improved performance, hardware-based filter accelerators, audio - and application-oriented peripherals, and a new memory configuration that supports single-chip solutions.
Features
The ADSP-21479BBCZ-2A processor has the following features:
Core clock speed up to 300MHz
5 M of on-chip RAM
FIR, IIR and FFT accelerators
16-bit wide SDR SDRAM external memory interface
The Digital Application Interface (DAI) enables customized access to peripherals, including an S/P DIF Tx/Rx and an 8-channel asynchronous sampling rate converter.
Fully enhanced DMA engine, including decentralized/aggregated DMA, delay line DMA
Real-time Clock (RTC)
Eight serial ports (SPORT) with support for I2S, left-justified sample pairs, and TDM modes
Watchdog timer
Shift register
2 SPI compatible ports, supporting both host and slave modes
UART and dual-wire port
16 pulse width modulation (PWM) channels
3 fully functional timers
196 pin CSP_BGA package
Temperature range for commercial, industrial and automotive applications
Model
Brand
Package
Quantity
Describe
ADI
LQFP-100
3000
High-performance fourth generation SHARC digital signal processor
ADI
LQFP-100
3000
High-performance fourth generation SHARC digital signal processor
