The AD4002BCPZ is an 18-bit precision, 2 MSPS sampling rate SAR analog-to-digital converter (ADC) featuring low noise, low power consumption and high speed ‌. The device is powered by a single power supply (VDD). The reference voltage (VREF) is provided externally and can be independent of the supply voltage.

Technical parameter

Resolution: 18 bit

Number of channels: 1 Channel

Interface type: 3-Wire, QSPI, SPI

Sampling ratio: 2 MS/s

Input type: Pseudo-Differential/Single-Ended

Structure: SAR

Analog supply voltage: 1.8V

Digital supply voltage: 1.71V to 5.5V

SNR - Signal to Noise ratio: 95 dB

Operating temperature: -40 °C to + 125°C

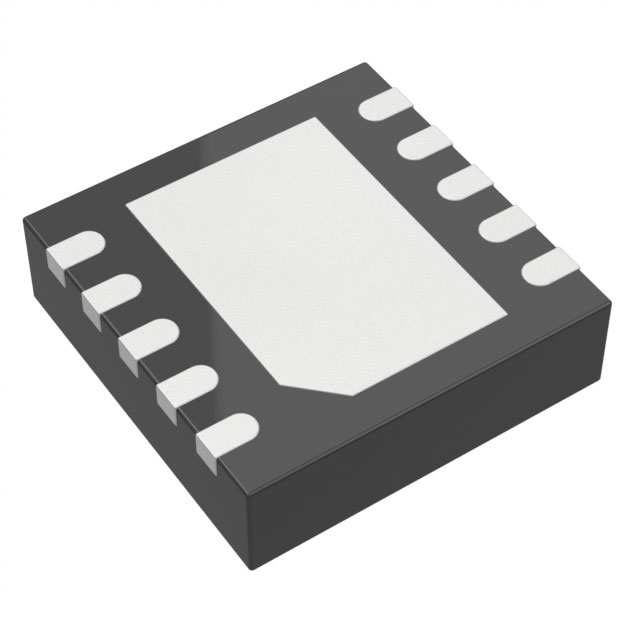

Package/Housing: LFCSP-10

Development kit: EVAL-AD4002FMCZ

DNL - differential nonlinearity: 0.5 LSB

Gain error: 10 LSB

INL - Integral nonlinearity: 3.2 LSB

Humidity sensitivity: Yes

Number of converters: 1 Converter

Product type: ADCs - Analog to Digital Converters

Reference type: External

Reference voltage: 5.1V

SFDR - Spury-free dynamic range: 122 dB

SINAD - Signal noise and distortion rate: 95 dB

THD - Total harmonic distortion: -125 dB

Applications

Automated test equipment

Machine automation

Medical equipment

Battery powered equipment

Precision data acquisition system

Instrumentation and control systems
