The AD9257BCPZ-40 is an 8-channel, 14-bit, 40 MSPS analog-to-digital converter (ADC) with built-in on-chip sample-and-hold circuitry designed specifically for low cost, low power, small size, and ease of use.

The ADC requires a 1.8V single power supply and an LVPECL/CMOS/LVDS compatible sample rate clock signal in order to maximize its operational performance. Many applications are met without the need for an external voltage reference source or driver.

The ADC automatically multiplies the sample rate clock to produce the appropriate LVDS serial data rate. It provides a data clock output (DCO) for capturing data at the output, and a frame clock output (FCO) for sending new output byte signals. It also supports independent closure of channels; Typical power consumption is less than 2 mW when all channels are disabled.

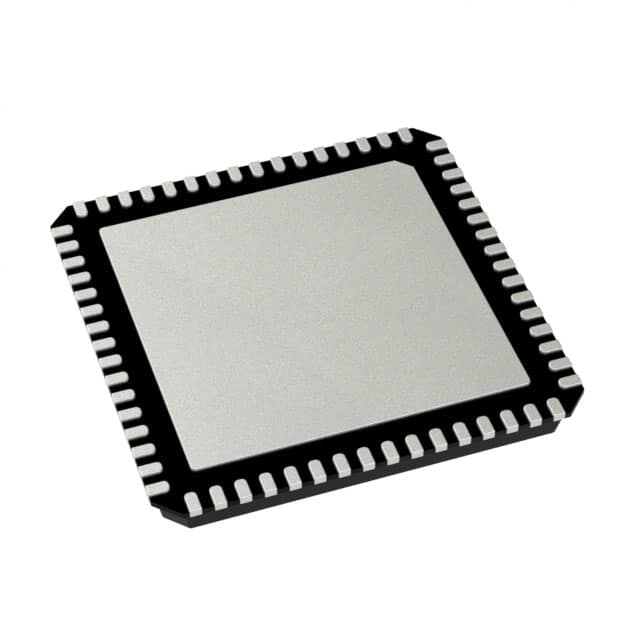

The AD9257BCPZ-40 comes in a RoHS-compliant 64-pin LFCSP package. The rated temperature range is −40°C to +85°C industrial temperature range.

Product features

1. Small size. Save space by integrating 8 ADCs in a small package.

2, low power consumption: 55 mW per channel (65 MSPS, power options can be adjusted).

3. Easy to use. The Data Clock Output (DCO) operates at up to 455 MHz and supports double data rate (DDR) operation.

4, flexible use. SPI control provides rich and flexible features to meet the needs of a variety of specific systems.

5, Pin compatible with AD9637 (8-channel 12-bit ADC).
