Service Telephone:86-755-83294757
Trade Name:MCIMX6L2DVN10AB
Data Manual:MCIMX6L2DVN10AB.pdf
Brand:NXP
Particular Year:23+

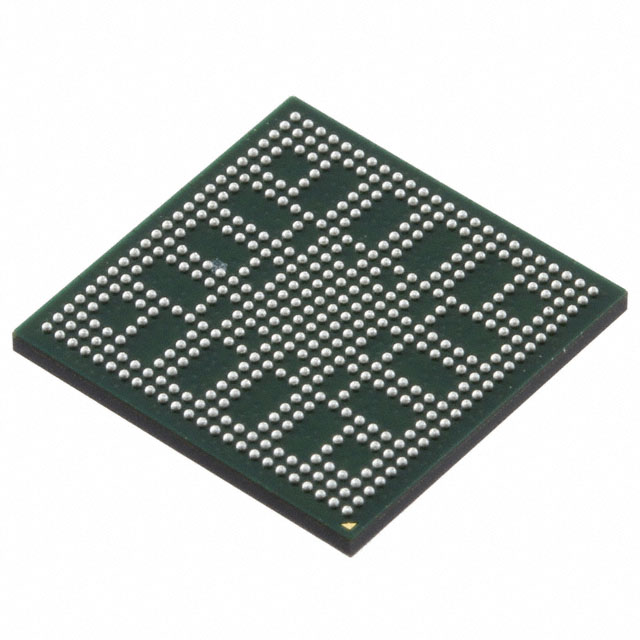

Package:432-TFBGA
Delivery Date:New original
Stock: 3000pcs
MCIMX6L2DVN10AB processor features advanced implementation of the a single ARM® Cortex®-A9 MPCore™ multicore processor, which operates at speeds up to 1 GHz. It includes 2D graphics processor and integrated power management. The processor provides a 32-bit DDR3-800 memory interface and a number of other interfaces for connecting peripherals, such as WLAN, Bluetooth™, GPS, hard drive, displays, and camera sensors.
Specifications
Number of Cores:1 Core
Data Bus Width:32 bit
Maximum Clock Frequency:1 GHz
L1 Cache Instruction Memory:32 kB
L1 Cache Data Memory:32 kB
Operating Supply Voltage:1.05 V to 1.5 V
Minimum Operating Temperature:0 C
Maximum Operating Temperature:+ 95 C
Data RAM Size:128 kB
Data ROM Size:96 kB
I/O Voltage:1.2 V, 1.5 V, 2.5 V
Instruction Type:Floating Point
Interface Type:I2C, JTAG, UART
L2 Cache Instruction / Data Memory:256 kB
Memory Type:DDR3, Flash, LPDDR2, PSRAM
Moisture Sensitive:Yes
Applications
Color and monochrome eReaders
Entry level tablets
Barcode scanners
