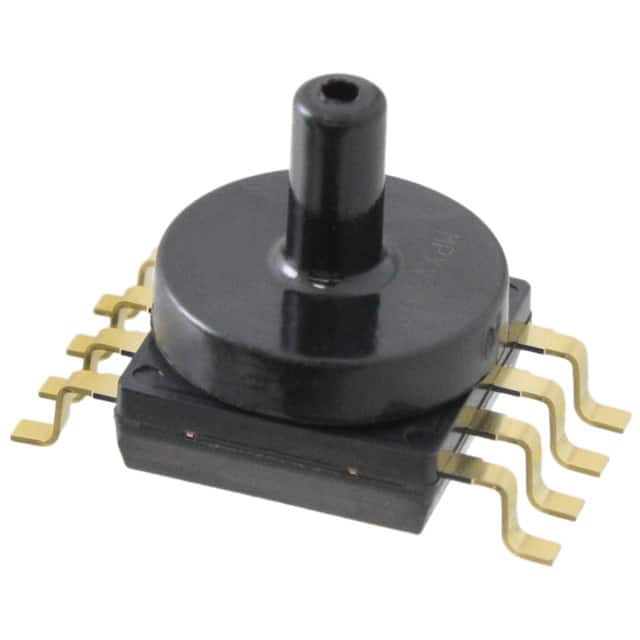

The MPXV7025GC6U piezoresistive sensor is a state-of-the-art monolithic silicon pressure sensor designed for use in a wide range of applications, especially those employing microcontrollers or microprocessors with A/D inputs. This patented single element sensor combines advanced micromachining techniques, thin film metallisation and bipolar processing to provide a precise, high level analogue output signal proportional to the applied pressure.

Device Specifications

Series: MPXV7025

Application: Panel Mount

Pressure Type: Composite

Operating Pressure: ±3.63PSI (±25kPa)

Output Type: Analogue Voltage

Output: 0.2V ~ 4.7V

Accuracy: ±5%

Voltage - Supply: 4.75V ~ 5.25V

Port Size: Male - 0.13" (3.18mm) Tube

Port Style: No Barbs

Features: Temperature Compensated

Termination Style: Gull Wing

Maximum Pressure: ±29.01PSI (±200kPa)

Operating Temperature: -40°C ~ 125°C

Mounting Type: Surface Mount

Package/Housing: 8-SMD, Gull Wing, Top Ported

Supplier Device Package: -

Base Part Number: MPXV7025

Application Examples

- Respiratory Systems

- Process Control

- Patient monitoring

- Remote monitoring equipment
