The STM32WL55JCI6 32-bit wireless Remote MCU is embedded with a powerful, ultra-low power, LPWAN-compliant radio solution that offers a wide range of modulations such as LoRa®, (G)FSK, (G)MSK, and BPSK. The device is based on a high-performance Arm® Cortex-M4 32-bit RISC core (operating at up to 48MHz). The kernel executes full DSP instructions and is complemented by an Arm Cortex-M0+ microcontroller. Both cores have a separate memory protection unit (MPU) for increased application security.

Device Specifications:

Type: TxRx + MCU

Rf series/Standard: 802.15.4

Protocol: LoRaWAN 1.0, Sigfox

Modulation: BPSK, GFSK, GMSK, FSK, MSK

Frequency: 150MHz ~ 960MHz

Data rate (Max.) : 300kbps

Power - Output: 22dBm

Sensitivity: -148dBm

Storage capacity: 256kB flash memory

Serial interface: ADC, GPIO, I²C, SPI, IrDA, UART, USART

GPIO: 43

Voltage - Power supply: 1.8V ~ 3.6V

Current - Reception: 4.82mA

Current - transmission: 21mA ~ 120mA

Operating temperature: -40°C ~ 85°C (TA)

Mounting type: Surface mount type

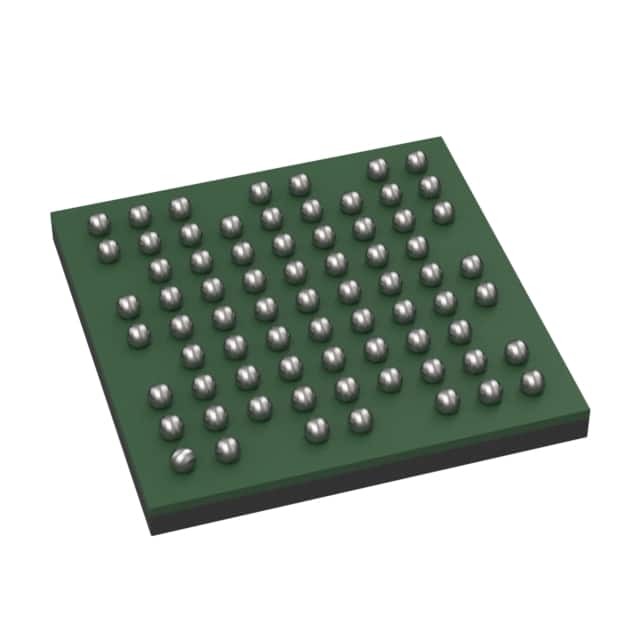

Package/housing: 73-UFBGA

Supplier Device Package: 73-UFBGA (5x5)
