RX23W microcontrollers incorporate security functions that are vital for Bluetooth® 5.0 Low Energy (LE) and IoT devices, as well as a wealth of peripheral functions such as touch keys, USB, and CAN, enabling system control and wireless communication with devices using a single chip. RX23W MCUs have full function support for Bluetooth 5.0 Low Energy long-range and mesh networking, and provide excellent reception performance.

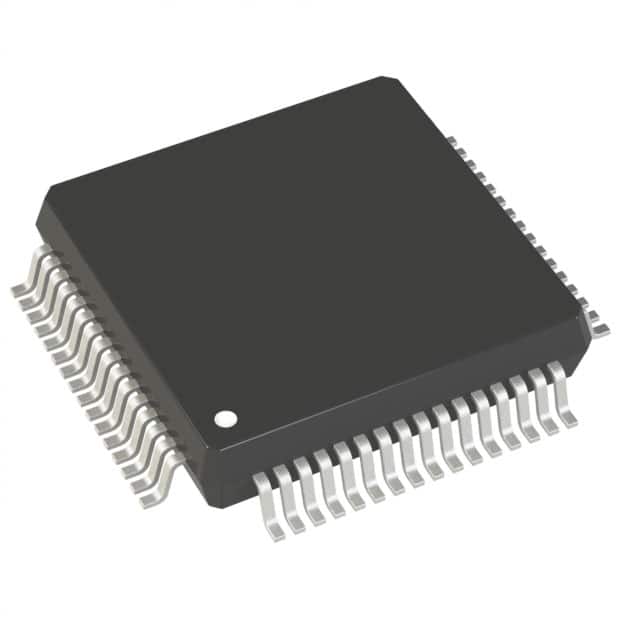

Feature of R5F523W8DDLN

RXv2 core 54MHz operation (4.33 CoreMark/MHz), single-precision FPU

Operating voltage: 1.8V to 3.6V

Operating temperature: -40 °C to 85 °C

Program Flash up to 512KB, SRAM up to 64KB

Bluetooth Low Energy (one channel)

Built-in Bluetooth 5.0-compliant RF transceiver and link layer

Supports LE 1M PHY, LE 2M PHY, LE Coded PHY (125kbps, 500kbps), LE Advertising Extensions

Built-in Bluetooth dedicated AES-CCM (128-bit) encryption circuit

USB 2.0 Host/Function/OTG (one channel)

Full speed (12Mbps), low speed (1.5Mbps), isochronous transfer

BC (battery charger) support

CAN (one channel)

ISO 11898-1 compliant CAN, up to 1Mbps transfer

SD Host I/F (on channel)

SD memory/SDIO 1- or 4-bit SD bus support

Enhanced analog: 12-bit A/D converter (14 channels), 12-bit D/A converter (2 channels)

Trusted Secure IP Lite (AES/TRNG)
