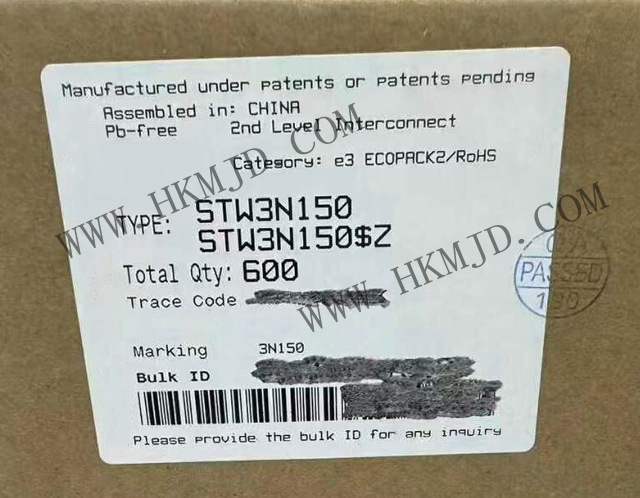

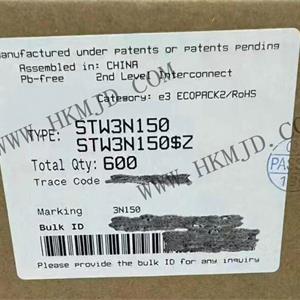

For picture reference, please see the specifications
< >

Commodity Model:STW3N150

Trade Name:N-Channel Power MOSFET

Brand:ST

Particular Year:25+

Package:TO-247

Delivery Date:New and Original

Stock: 12000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ST
Model
STW3N150
Package
TO-247
Describe
N-channel 1500 V, 6 Ohm typical, 2.5 A PowerMESH(TM) power MOSFET, TO-247 package

Product Description

The STW3N150 is an N-channel power MOSFET from STMicroelectronics, packaged in a TO-247-3 package, and part of the MDmesh™ series, suitable for high-voltage, high-power applications. The device is made from Si semiconductor material, featuring a 1500V drain-source voltage (Vdss) and a 2.5A continuous drain current (Id), making it ideal for power management, industrial control, and motor drive applications.


Key Parameters

Product Model: STW3N150

Drain-Source Voltage (Vdss): 1500V

Continuous Drain Current (Id): 2.5A (Tc=25°C)

On-resistance (RDS(on)): 9Ω @ 1.3A, 10V

Gate threshold voltage (VGS(th)): 3–5V

Maximum power dissipation (PD): 140W (Tc)

Input capacitance (Ciss): 939pF @ 25V

Gate charge (Qg): 29.3 nC @ 10 V

Operating temperature range: -50°C to +150°C

Package: TO-247-3


Key Features

High voltage rating: 1500V drain-source voltage, suitable for high-voltage power conversion and inverter applications.

Low on-resistance: 9Ω @ 1.3A, reducing power loss and improving efficiency.

Fast switching: Input capacitance 939pF, gate charge 29.3nC, optimising high-frequency switching performance.

High reliability: Compliant with RoHS standards, suitable for industrial and automotive applications.
