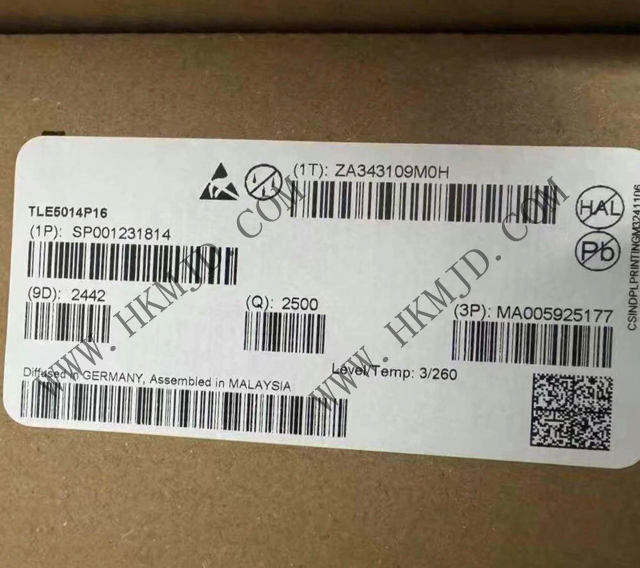

Trade Name:Angle Sensor
Data Manual:TLE5014P16.pdf
Brand:INFINEON
Particular Year:24+
Package:PG-TDSO-16
Delivery Date:New and Original
Stock: 2500pcs
The TLE5014P16 is an automotive GMR Angle sensor with PWM interface. The sensor features integrated magnetic field induction, EEPROM, 360° Angle measurement, high voltage and reverse polarity. The TLE5014 sensor has an Angle error of less than 1° over its entire temperature range and service life.
Product Specifications:
For measurement: Angle, linearity, rotation
Technology: Magnetoresistance
Rotation Angle - Electrical, mechanical: 0° ~ 360°
Linear range: -
Output: PWM
Output signal: Cosine, Sine
Actuator type: External magnet, not included
Linearity: -
Resistance tolerance: -
Voltage - Power supply: 4.2V ~ 5.5V
Mounting type: Surface mount type
Terminal style: Gullwing
Operating temperature: -40°C ~ 125°C
Package/housing: 16-TSSOP (0.154", 3.90mm wide)
Supplier device package: PG-TDSO-16
Model
Brand
Package
Quantity
Describe
MPS
QFN-16
2500
INL<0.6° (<0.1°), high-precision, high-bandwidth, configurable digital magnetic Angle sensor
INFINEON
PG-TDSO-16
2000
Angle sensor based on GMR, SPI interface, EC-Q100 certification
