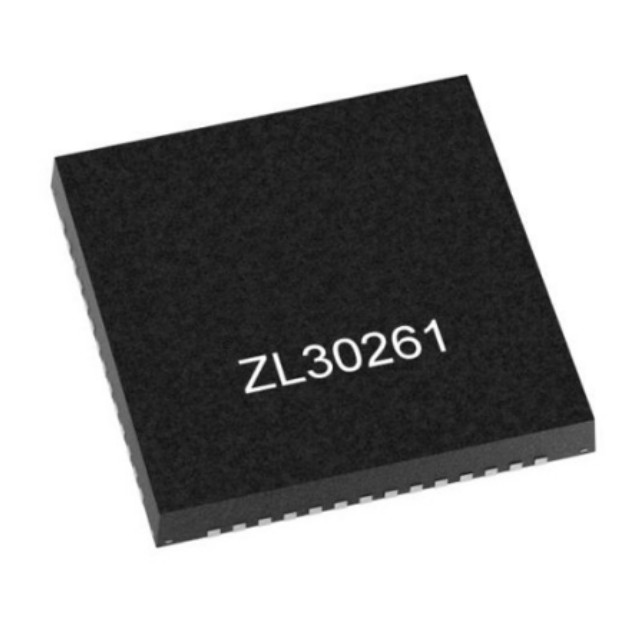

The ZL30261LDF1 is a high-performance, arbitrary-rate multiplier and clock generator that simplifies board design by generating ultra-low jitter clock signals from a single crystal or crystal oscillator while generating additional independent frequency families.

The ZL30261LDF1 integrates two independent frequency families on a single chip with best-in-class jitter performance and a fractional-N APLL with fractional and integer frequency dividers.The ZL30261 creates a complete clock tree, improves design reliability, reduces bill-of-materials (BOM) costs, and simplifies designs by replacing multiple crystals and peripheral timing components.

ZL30261LDF1 Product Attributes:

Type: Clock Multiplier, Frequency Synthesizer

PLL: With Bypass

Input: CMOS, Crystal

Outputs: CMOS, HCSL, HSTL, LVDS, LVPECL

Number of Circuits: 1

Ratio - Input:Output: 4:6

Differential - Input:Output: Yes/Yes

Frequency - Max: 1.045GHz

Divider/Multiplier: Yes/No

Voltage - Supply: 1.71V ~ 3.465V

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

Package/Housing: 56-VFQFN bare pads

Supplier Device Package: 56-QFN (8x8)

Applications

Frequency conversion and frequency synthesis in various devices
