The TMS5700432BPZQQ1R 32-bit RISC Flash microcontroller is a high-performance automotive microcontroller designed for use in safety systems. The security architecture includes dual CPUs in lockstep, built-in self-test (BIST) logic for CPU and memory, ECC on flash and data SRAM, parity on peripheral memory and loop functionality on peripheral I/O. The TMS5700432BPZQQ1R device integrates the ARM Cortex-R4 CPU. DMIPS/MHz, running at up to 80MHz and providing up to 132DMIPS performance.

Features

- High-performance automotive-grade microcontroller for safety-critical microcontrollers (MCUs)

- Dual central processing units (CPUs) running in lockstep

- ECC on flash and RAM interfaces

- Built-in self-test for CPU and on-chip RAM

- Error signalling module with error pins

- Voltage and clock monitoring

- Equipped with ARM® Cortex® -R4 32-bit RISC CPU

-R4 32-bit RISC CPU

- High efficiency 1.66DMIPS/MHz with 8-stage pipeline

- 8-area memory protection unit (MPU)

- Open architecture with third party support

- Operating conditions

- 80MHz system clock

- Kernel supply voltage (VCC): 1.2V nominal

- I/O supply voltage (VCCIO): 3.3V nominal

- ADC supply voltage (VCCAD): 3.3V nominal

- Integrated memory

- Up to 384KB of ECC-capable program memory

- 32KB RAM with ECC support

- ECC-enabled 16KB Flash for EERPOM emulation

- Hercules™ common platform architecture

- Consistent memory mapping across families

- Real Time Interrupt (RTI) timer (OS timer)

- 96-channel vector interrupt module (VIM)

- 2-channel cyclic redundancy checker (CRC)

- Frequency Modulated Phase Locked Loop (FMPLL) with built-in skip week detector

- IEEE 1149.1 JTAG boundary scan and ARM CoreSight™ components

- Advanced JTAG Security Module (AJSM)

- Multiple communication interfaces

- Two Controller Area Network (CAN) controllers (DCAN)

- DCAN1 - 32 mailboxes with parity protection

- DCAN2 - 16 mailboxes with parity protection

- Compatible with CAN protocol version 2.0B

- Multi-channel buffered serial peripheral interface (MibSPI) module

- 128 parity-protected words

- Two standard serial peripheral interface (SPI) modules

- UART (SCI) interface supporting Local Interconnect Network (LIN 2.1) interface

- Next Generation High End Timer (N2HET) module

- Up to 19 programmable pins

- 128-word instruction RAM with parity protection

- Includes hardware angle generator

- Dedicated High End Timer Transmission Unit (HTU) with MPU

- Enhanced quadrature encoder pulse (eQEP) module

- Motor position encoder interface

- 12-bit multi-channel buffered analogue-to-digital converter (ADC) module

- 16 channels

- 64 result buffers with parity protection

- Up to 45 general purpose input and output (GPIO) pins

- 8 dedicated interruptible GPIO pins

- Package

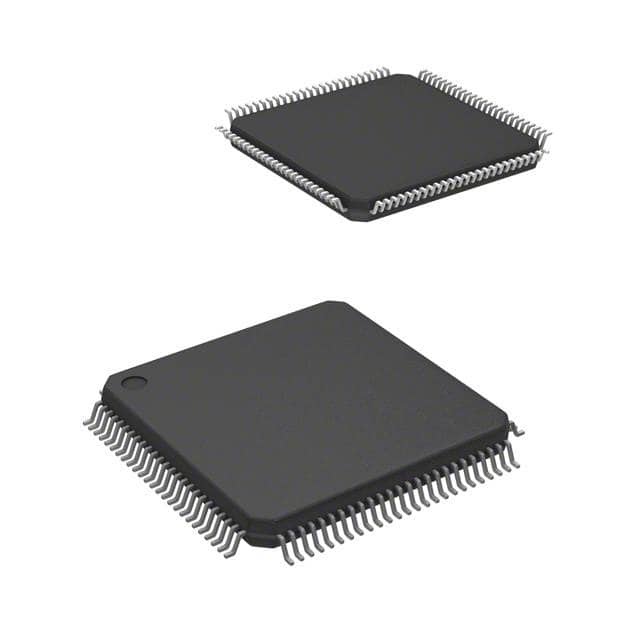

- 100-pin quad flat package (PZ) [Green]

Applications

- Braking systems (Anti-lock System (ABS) and Electronic Stability Control (ESC))

- Electronic Power Steering (EPS)

- Electric pump control

- Battery management system

- Active driver assistance systems

- Aerospace and avionics

- Rail

- Off-road vehicles
