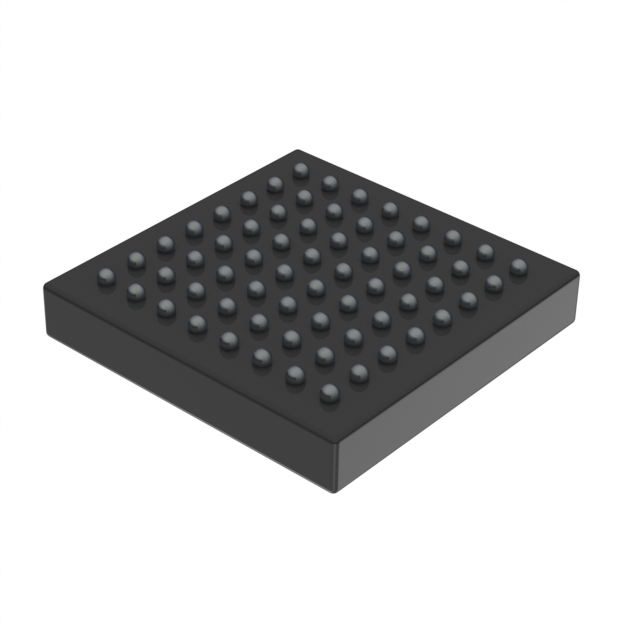

MK20DN128VMP5: 50MHz, 32-bit ARM® Cortex®-M4 Kinetis K20 microcontroller IC, LFBGA-64

Model: MK20DN128VMP5

Package: LFBGA-64

Type: 32-bit microcontroller - MCU

MK20DN128VMP5 Product Attributes:

Series: Kinetis K20

Core Processor: ARM® Cortex®-M4

Core Specifications: 32-bit

Speed: 50MHz

Connectivity: I2C, IrDA, SPI, UART/USART, USB, USB OTG

Peripherals: DMA, I2S, LVD, POR, PWM, WDT

I/O Count: 40

Program Memory Capacity: 128KB (128K x 8)

Program Memory Type: Flash

RAM Size: 16K x 8

Voltage - Supply (Vcc/Vdd): 1.71V to 3.6V

Data converter: A/D 13x16b

Oscillator type: Internal

Operating temperature: -40°C to 105°C (TA)

Mounting type: Surface mount

Supplier device package: 64-MAPBGA (5x5)

Package/housing: 64-LFBGA

MK20DN128VMP5 Features:

Operating characteristics

– Voltage Range: 1.71 to 3.6 V

– Flash Write Voltage Range: 1.71 to 3.6 V

– Operating Temperature Range: -40 to 105°C

Performance

– ARM Cortex-M4 core operating at up to 50 MHz, supporting DSP instructions, delivering 1.25 Dhrystone MIPS per MHz

Memory and Memory Interfaces

– Up to 128 KB program flash memory.

– Up to 32 KB FlexNVM (for FlexMemory devices)

– 2 KB FlexRAM (for FlexMemory devices)

– Up to 16 KB RAM

– Serial programming interface (EzPort)

Clock

– 3 to 32 MHz crystal oscillator

– 32 kHz crystal oscillator

– Multi-function clock generator
