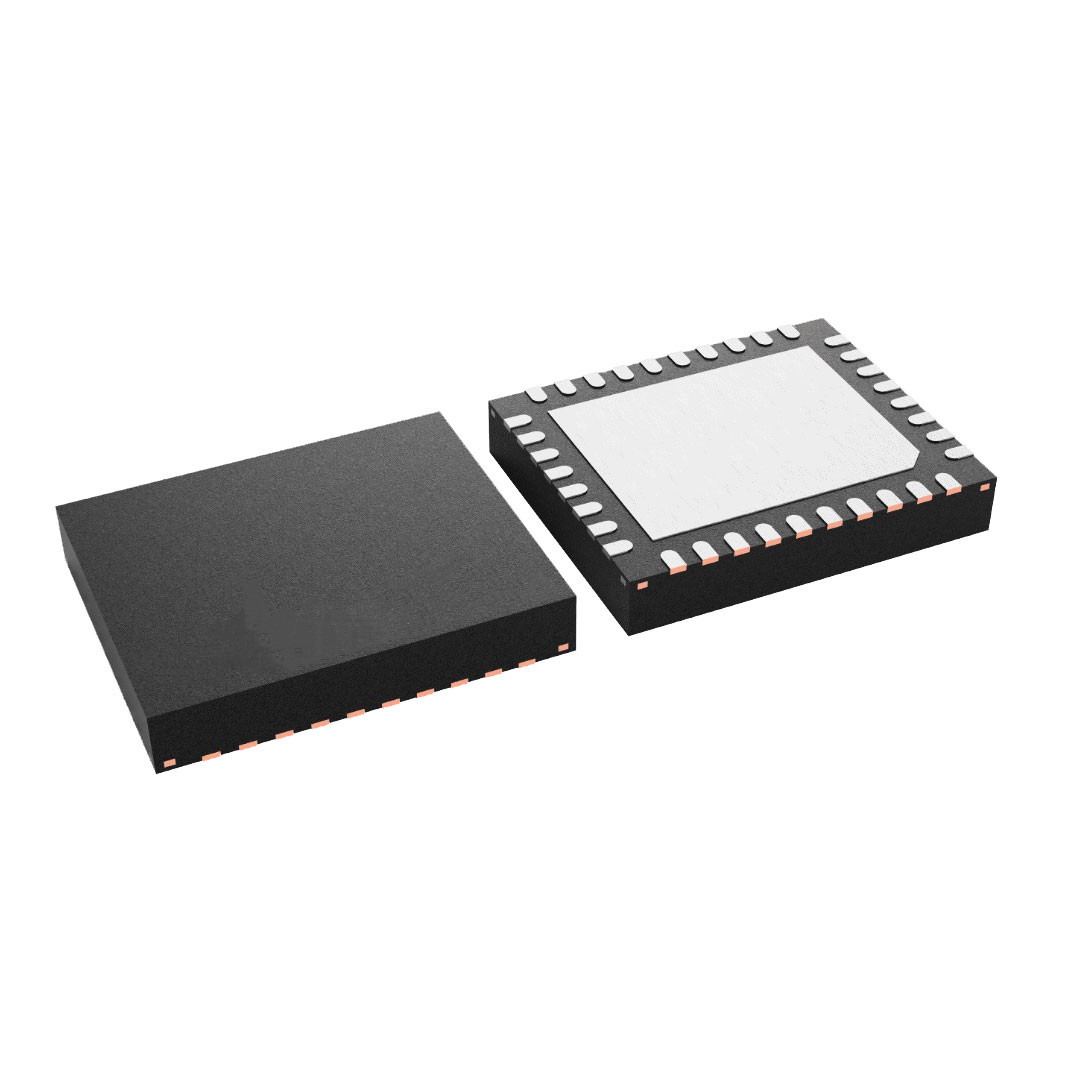

AMC6V704YBHR is a highly integrated, low-power analog monitor and controller for optical-transceiver applications.

AMC6V704YBHR includes four, 12-bit current-output digital-to-analog converters (IDACs) and four, 12-bit voltage-output DACs (VDACs) with programmable output ranges. The device also includes a 12-bit, 1MSPS analog-to-digital converter (ADC) used for external and internal signal monitoring, supply and temperature alarm monitors, and a high-precision internal reference.

Feature of AMC6V704YBHR

Four 12-bit current output DACs (IDACs)

200mA full-scale output range

Low supply headroom: 300mV at 200mA

Four 12-bit voltage output DACs (VDACs)

Selectable full-scale output ranges: –5V, –2.5V, +2.5V and +5V

High-current drive capability: ±50mA

Multichannel, 12-bit, 1MSPS SAR ADC

Four external inputs: 2.5V and 5V ranges

Four IDAC voltage monitor channels

Four VDAC current monitor channels

Programmable sequencer

Programmable out-of-range alarms

Internal 2.5V reference

Supply and temperature fault alarms

SPI and I2C interfaces: 1.7V to 3.6V operation

SPI: 4-wire interface

I2C: Four target addresses

Specified temperature range: –40°C to +125°C

Applications of AMC6V704YBHR

Optical module

Intra-DC interconnect (metro)
