Service Telephone:86-755-83294757
Trade Name:Data Acquisition - ADC/DAC - Special Purpose
Brand:ADI
Particular Year:24+
Package:BGA-81
Delivery Date:New and original
Stock: 3000pcs
The ADAQ4380-4BBCZ is a four-channel, 16-bit Precision Data acquisition (DAQ) μModule® system that shortenes the development cycle for high-precision measurement systems by transferring the signal chain design challenge for the designer to select, optimize, and lay out components to the device.
The ADAQ4380-4 uses system level packaging (SIP) technology to reduce the number of end-system components by combining multiple common signal processing and conditioning modules into a single suite. The ADAQ4380-4 consists of the following components:
• A four-channel high resolution 16-bit, 4 MSPS synchronous sampling SAR ADC
• Low noise, fully differential ADC driver
• A precision 3.3V reference voltage
• Low noise buffer amplifier
• Low noise, low pressure difference linear regulator
• And key passive components needed to achieve optimized signal chain performance
The ADAQ4380-4 features an on-chip oversampling module that improves dynamic range and reduces noise at lower bandwidth. The module increases the resolution by up to two digits.
In an 8mm x 8mm, 0.8mm pitch, 81-pin BGA package, the ADAQ4380-4μModule ® supports a compact size design without compromising its performance, while simplifying bill of materials management for end systems.
Applications:
• Laboratory grade battery test system
• Motor control current detection
• Motor control position feedback
• Sonar
• Power quality monitoring
• Data acquisition system
• Erbium-doped fiber amplifier (EDFA) applications
• I/Q demodulation
Model
Brand
Package
Quantity
Describe
TI
DSBGA-60
2000
8-Channel 16-Bit Analog Controllers With Current-Output DACs and Mux Output
ADI
BGA-81
3000
Quad, 14-bit, 4 MSPS, Simultaneous Sampling, μModule Data Acquisition Solution
A: all online goods on the shelves can be ordered online, but considering the large liquidity of spot inventory, it is not possible to achieve 100% accuracy at present. In case of any abnormality, you can contact our company online and give the corresponding solution.
A: our self-supporting products are from cooperative domestic and foreign original factories or authorized agents, and the source can be traced to ensure the original and authentic products.
A: at present, our self-employed brands TI,ST,ADI,NXP,LATTICE,CYPRESS,INFINEON,XILINX and other first-line brands. Other channels are the original factory and agency channels. If necessary, we can communicate and confirm according to the specific brand and model.
A: You can inquire through the website, or by phone and email.
A: the delivery date is marked in most commodity information. You can estimate the delivery time of the commodity according to the delivery date. The specific arrival time depends on the warehouse where the commodity is located and the logistics mode you choose.
A: you can issue ordinary invoices for individual users or special VAT invoices for enterprise users.
The full name of Analog Devices is Analog Devices, Inc. (ADI). As an outstanding supplier specializing in semiconductor sensors and signal processing ICs, adi regards innovation, performance and excellence as the cultural pillars of the company and ha…
ADA4077-2ARMZ

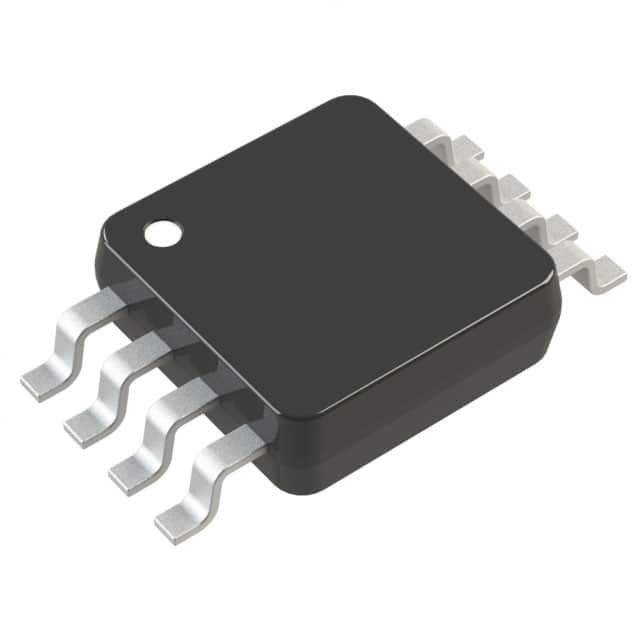

The ADA4077-2ARMZ is a basket of dual-channel operational amplifiers, featuring extremely low offset voltage and drift, as well as low input bias current, noise and power consumption. When using capacitive loads of 1000 pF or more, the output is stabl…ADP7142ACPZN3.3
The ADP7142ACPZN3.3 is a CMOS low-dropout (LDO) linear regulator with an operating voltage range of 2.7V to 40V and an output current of up to 200mA. This high input voltage LDO is suitable for high-performance analog and mixed-signal circuits that re…ADP7157ACPZ-04
The ADP7157ACPZ-04 is an adjustable linear voltage regulator, powered by a 2.3V to 5.5V supply, with a maximum output current of 1.2A. This device adopts an advanced proprietary architecture, offering high power supply suppression and ultra-low noise …ADP7156ACPZ-3.3
The ADP7156ACPZ-3.3 is a linear voltage regulator that is powered by a 2.3V to 5.5V supply and has a maximum output current of 1.2A. The ADP7156ACPZ-3.3 adopts an advanced proprietary architecture, offering high power supply suppression and ultra-low …ADP1762ACPZ-1.3
The ADP1762ACPZ-1.3 is a low-noise, low-dropout (LDO) linear regulator. It operates with a single input power supply, with an input voltage as low as 1.10V. There is no need for an external bias power supply to enhance efficiency, and it provides an o…LT1999HS8-20

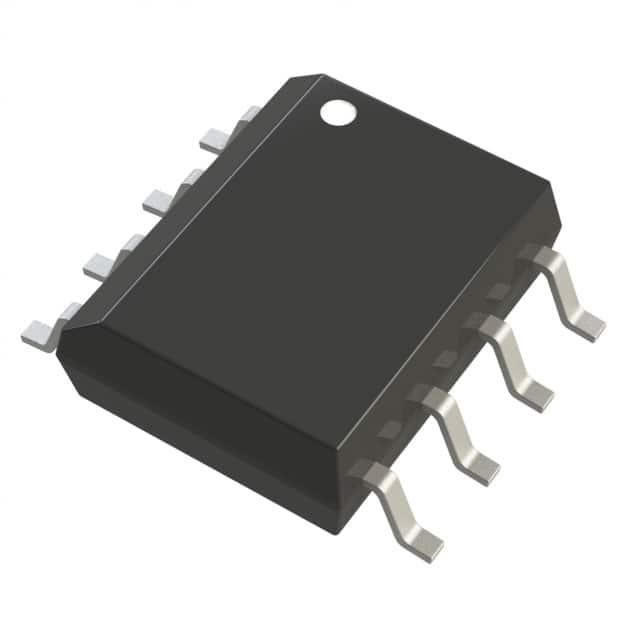

The LT1999HS8-20 is a high-speed and precise current detection amplifier, specifically designed for monitoring bidirectional current within a wide common-mode range. The LT1999HS8-20 offers three gain options: 10V/V, 20V/V and 50V/V. It has the follow…Contact Number:86-755-83294757
