Instructions:

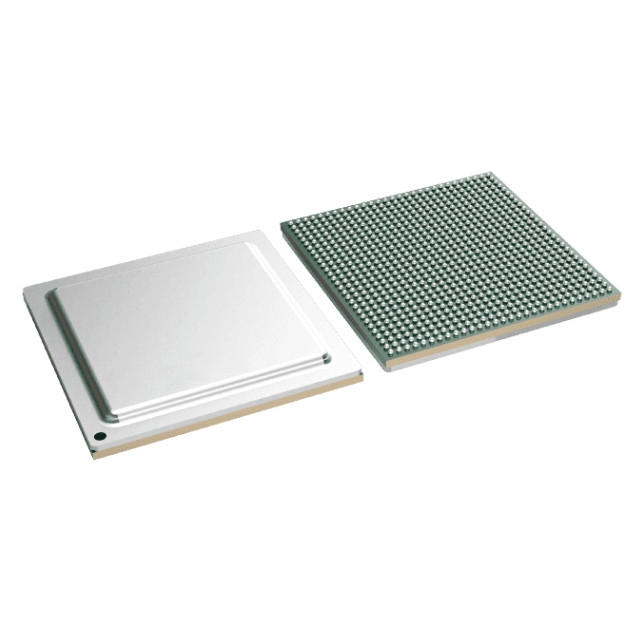

The TMS320C6672ACYPA is a high-performance dual-core C66x fixed-point and floating-point digital signal processor with a core operating at up to 1.25GHz. The device supports high-performance signal processing applications such as mission critical, medical imaging, testing, and automation. The TI C6672 platform is energy efficient and easy to use. The C66x CorePac DSP is fully backward compatible with all existing C6000 series fixed-point and floating-point DSPS.

Basic parameters:

Product: TMS320C6672ACYPA

Core: C66x

Number of cores: 2 cores

Maximum clock frequency: 1 GHz, 1.25 GHz, 1.5 GHz

Package/housing: FCBGA-841

Program memory size: -

Data RAM size: -

L1 Cache instruction memory: 2 x 32 kB

L1 Cache data storage: 2 x 32 kB

Working power supply voltage: 900 mV to 1.1V

Series: TMS320C6672

Installation style: SMD/SMT

Operating temperature: -40 °C to + 100°C:

Package: Tray

Trademark: Texas Instruments

Data bus width: 8 bit/16 bit/32 bit

Description type: Fixed/Floating Point

MMACS: 80,000 MMACS

Humidity sensitivity: Yes

Number of inputs/outputs: 16 I/ OS

Number of timers/counters: 10 Timer

Product type: DSP-Digital Signal Processors & Controllers

Power supply voltage - Max: 1.1V

Power supply voltage - Minimum: 900 mV

Unit weight: 5 g
