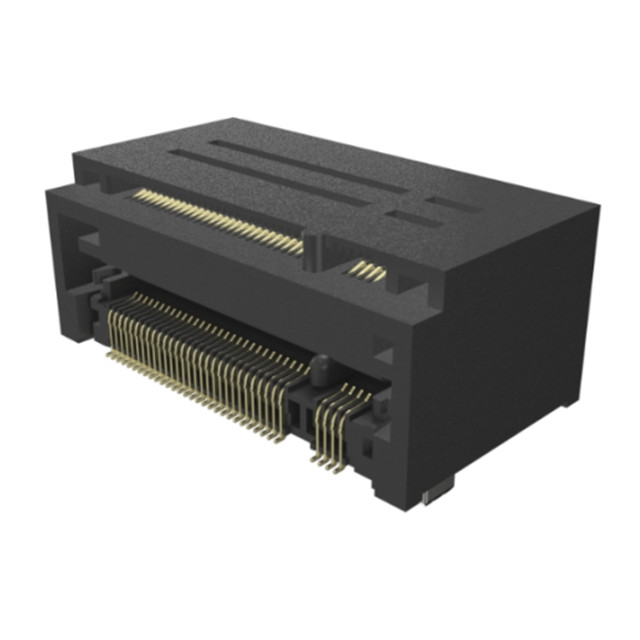

10166503-004RHLF: PCIe M.2 Connector, storage and server connector, P=0.5mm, stacked, M key, 15μin gold plated

Product: 10166503-004RHLF

Series: PCIe®M.2 Gen 4 card edge connector

Type: NGFF

Speed: 16Gb/s

Overview:

Amphenol's PCIe M.2 Gen 3 and Gen 4 connectors offer 67 contacts at 0.50mm pitch. It takes up less board space, offers more connector height options, and supports higher data rates compared to PCIe mini-card connectors. It is designed for PCIe 3.0, USB 3.0 and SATA 3.0 applications for tablets, laptops, thin and light storage and server applications.

Features and advantages:

Card edge connector, 67 contacts, pitch 0.50mm

Compatible with PCIe 3.0, USB 3.0, and SATA 3.0

0.50mm spacing

The splice key uses 75 positions and 8 positions

Various connector height options

Supports single-sided and double-sided modules

Fully compliant with PCI-SIG PCIe M.2 specification

Serves a variety of high-speed peripheral applications

Save board space

Flexible to meet various design needs

Lower the overall height profile

Achieve higher data transfer rates
