Trade Name:Card Edge Connectors
Brand:Amphenol
Particular Year:24+
Package:164POS
Delivery Date:New and original
Stock: 1000pcs

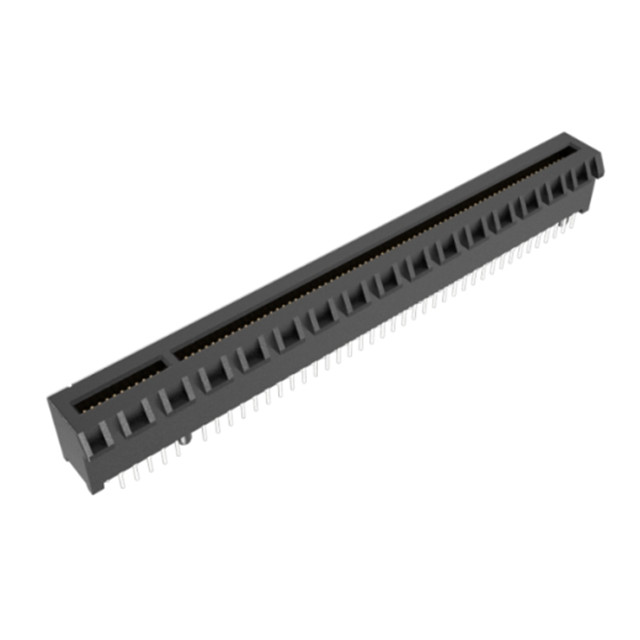

10142333-10013MLF -- PCI Express®x16 vertical Card Edge Connector, 164 Positions, 1mm (0.039inch) Pitch
Product: 10142333-10013MLF
Series: PCIe Gen 4
Transmission rate: 16Gb/s
Card type: PCI Express™
Male and female: female head
Number of pins/cells/rows: 11; 71
Number of needles: 164
Card thickness: 1.57mm
Number of rows: 2
Spacing: 1.00mm
Reading: double
Features: Board guide, lock slope, pick and place
Installation type: Through hole
End connection: welded, staggered
Contact material: copper alloy
Contact surface treatment: gold plating
Contact surface treatment thickness: 30.0µin (0.76µm)
Contact type: -
Color: Black
Flange features: -
Operating temperature: -55°C ~ 105°C
Material - Insulation: thermoplastic
Basic product number: 10142333
Instructions:
Amphenol FCI PCIe Gen 4 and Gen 5 connectors comply with the industry standards PCIe 4.0 and 5.0 that require higher speed performance (proposal). This series of vertical and right-angle card edge connectors feature 1mm pitch and support signal transmission based on different PCI Express® specifications on desktop computers, workstations and servers.
