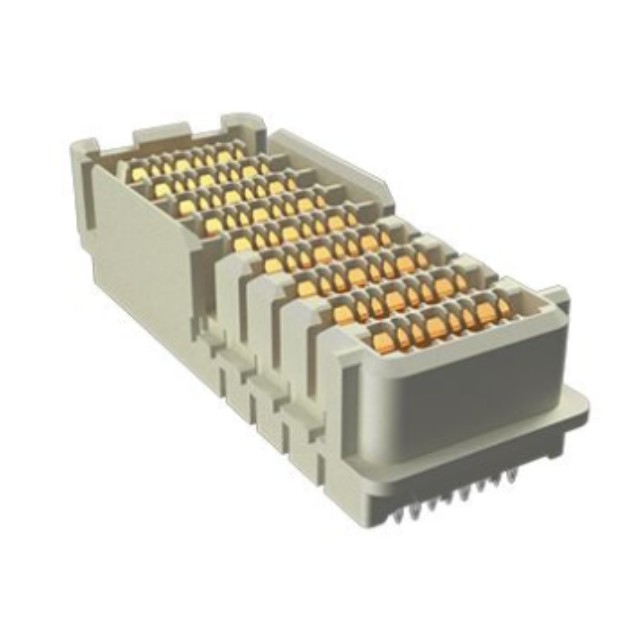

10138102-107500ULF—ExaMEZZ® 56Gb/s High Speed Mezzanine Connector System, 2-pair, 21 column, 7.5mm Plug Height.

ExaMEZZ® Mezzanine connector system meets industry specifications requiring higher bandwidth applications from 25Gb/s to 56Gb/s. The optimized connector design delivers superior signal integrity performance resulting in low crosstalk noise and low insertion loss while minimizing channel performance variation for every differential pair. Each signal wafer incorporates an innovative onepiece, embossed ground structure to improve crosstalk performance through 56Gb/s. The simple, functional design contributes to a very cost-effective solution.

Features

Data rates scalable from 25Gb/s to 56Gb/s to support system upgrades without costly redesigns

92Ω nominal impedance

Unique beam-on-beam interface

Hermaphroditic mating interface protects mating beams

Integrated power and additional signal pin per column

High speed signal PCB hole: 0.36mm (finished hole)

Ground pin PCB hole: 0.5mm (finished hole)

Press-fit Pin Design

Benefits

Meets Industry specifications such as PCI Express, SATA, SAS, OIF CEI; supporting future system performance upgrades while eliminating costly redesign burden

Minimizes impedance discontinuities

Supports both 85 and 100Ω applications

Provides low crosstalk while eliminating insertion loss resonances

Reduces mating force up to 65% compared to traditional blade and beam designs

Durable, reliable mating interface design eliminates crushed pins

Enables greater design flexibility; integrating high speed, low speed, and power in the same connector

Optimizes electrical performance and aspect ratio

Direct mechanical connection, optimizing ruggedness and signal integrity
