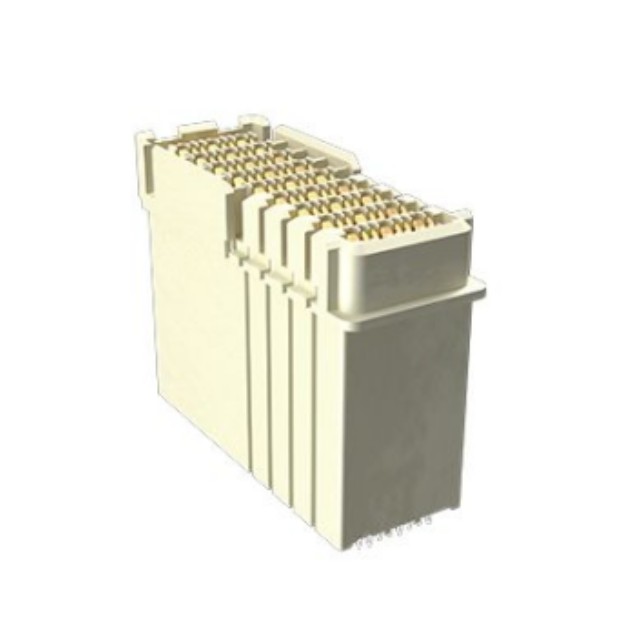

10143267-127500ULF-ExaMEZZ® mezzanine connector system meets industry specifications required for higher bandwidth applications from 25Gb/s to 56Gb/s.

● 15 mm to 55 mm stack height options in 2- and 4-pair configurations

● Innovative contact-on-beam interface minimises residual stubs to improve signal integrity performance while providing extremely low mating forces

● ExaMEZZ® integrates high-speed differential signals, low-speed signals and power in a single connector, optimising design flexibility

10143267-127500ULF-ExaMEZZ® 56Gb/s high-speed mezzanine 2 pairs, 19 rows, 27.5 mm stack height, 152 contacts

Material

Contacts High performance copper alloy

Plating High-performance plating (Telecordia GR-1217 CORE) on detachable interfaces, tin over nickel on crimp ends

Housing: High temperature thermoplastic, UL 94 V-0

Mechanical properties

> 2 mm long fit wipe

X- and Y-direction capture range up to ± 1.4 mm wide

Maximum engagement force per contact 0.45N

Minimum removal force per contact 0.10N

Average force to insert an EON: 12N maximum

Environments

Designed to meet the needs of the Telcordia GR-1217-CORE central office environment.

Operating temperature range: -55°C to +85°C

Target Applications

Hubs

Switches

Routers

Optical Transport Wireless

Infrastructure Mezzanine IO Cards

Expandable in a variety of 1U boxes

Servers

External Storage Systems

Supercomputers

Test Equipment

Simulation equipment

Instrumentation

Medical equipment
