Trade Name:STM32U585QII3
Data Manual:STM32U585QII3.pdf
Brand:ST
Particular Year:23+
Package:132-UFBGA
Delivery Date:New original
Stock: 3582pcs

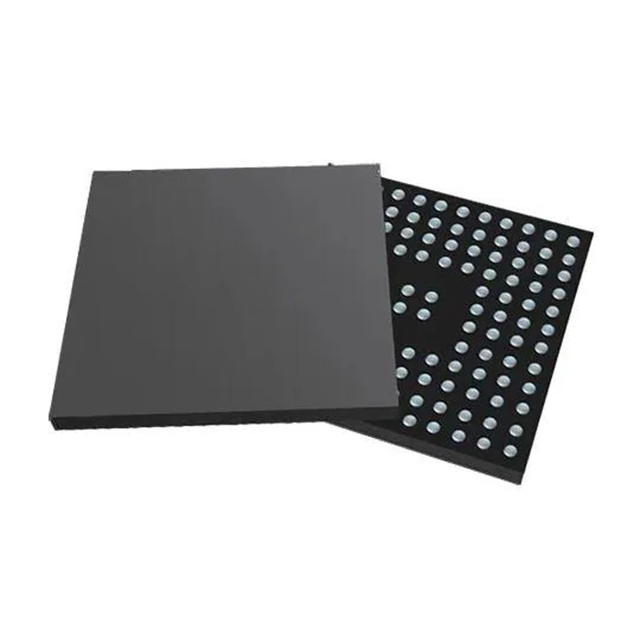

Microcontroller MCU STM32U585QII3 132UFBGA ARM Cortex-M33 Microcontroller Chip
Product Description
STM32U585QII3 Offer active tamper detection and protection against transient and environmental perturbation attacks, thanks to several internal monitoring generating secret data erase in case of attack. This helps to fit the PCI requirements for point of sales applications.
Features
4Kbyte data cache for external memories
2Mbyte flash memory with ECC, 2 banks read-while-write, including 512 Kbytes with 100 kcycles
Secure firmware installation (SFI) thanks to embedded root secure services (RSS)
Secure data storage with hardware unique key (HUK)
Secure firmware upgrade support with TF-M
2 AES coprocessors including one withDPA resistance
Public key accelerator, DPA resistant
On-the-fly decryption of Octo-SPI external memories
HASH hardware accelerator
Specifications
Package/Case: UFBGA-132
Core: ARM Cortex M33
Program Memory Size: 2 MB
Data Bus Width: 32 bit/16 bit
ADC Resolution: 12 bit, 14 bit
Maximum Clock Frequency: 160 MHz
Number of I/Os: 14 I/O
Data RAM Size: 2 kB
Supply Voltage - Min: 1.71 V
Supply Voltage - Max: 3.6 V
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
DAC Resolution: 12 bit
Data RAM Type: SRAM
Interface Type: SPI, UART
Moisture Sensitive: Yes
Number of ADC Channels: 24 Channel
Number of Timers/Counters: 19 Timer
