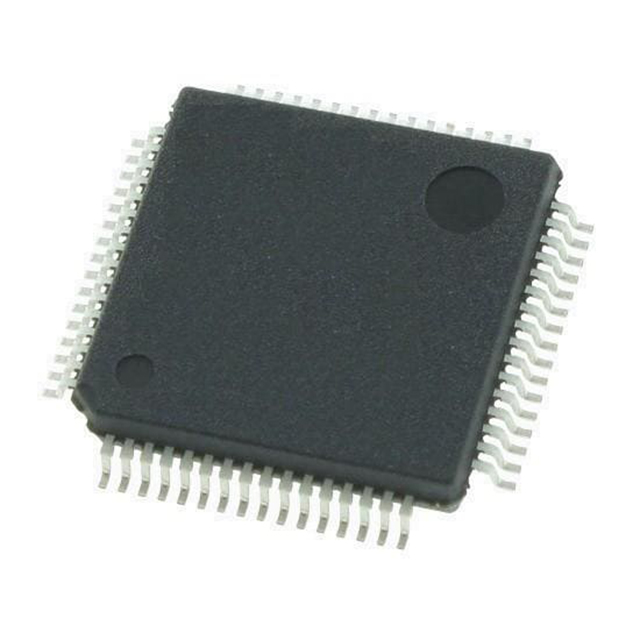

STM32U575RGT6 ARM Cortex -M33 Embedded Microcontrollers IC 64-LQFP Package

Product Description

STM32U575RGT6's window watchdog is based on a 7-bit downcounter that can be set as free running. It can be used as a watchdog to reset the device when a problem occurs. It is clocked from the main clock. It has an early warning interrupt capability and the counter can be frozen in debug mode.

Specifications

Product Status:Active

Core Processor:ARM® Cortex®-M33

Core Size:32-Bit

Speed:160MHz

Connectivity:CANbus, I²C, IrDA, LINbus, MMC/SD/SDIO, SAI, SmartCard, SPDIF, SPI, UART/USART, USB, USB OTG

Peripherals:Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT

Number of I/O:51

Program Memory Size:1MB (1M x 8)

Program Memory Type:FLASH

RAM Size:784K x 8

Voltage - Supply (Vcc/Vdd):1.71V ~ 3.6V

Data Converters:A/D 17x12/14b SAR; D/A 2x12b

Oscillator Type:External, Internal

Operating Temperature:-40°C ~ 85°C (TA)

Mounting Type:Surface Mount

Package / Case:64-LQFP

Features

A 24-bit down counter

Autoreload capability

Maskable system interrupt generation when the counter reaches 0.

Programmable clock source
