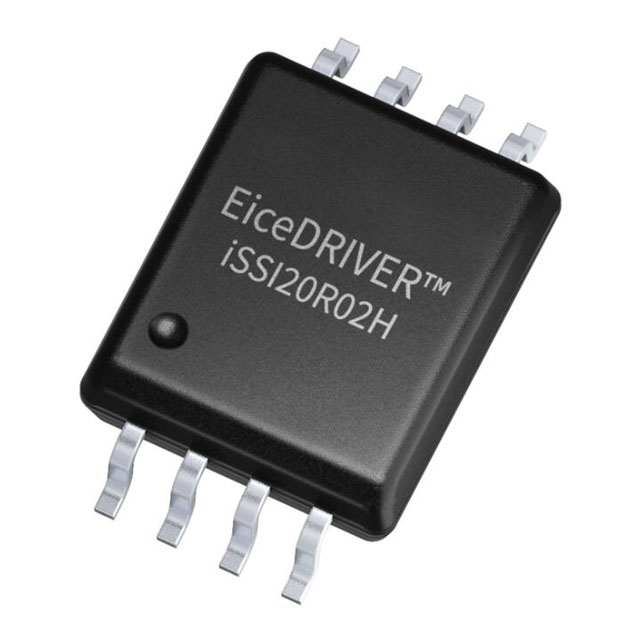

ISSI20R02HXUMA1 is coreless-transformer advanced solid-state isolator. It provides powerful energy transmission over a galvanic isolation barrier. No dedicated voltage supply required on the output stage. Input to output direct drive is accomplished via the Coreless Transformer technology. This device features over-current and over-temperature protections, to easily and safely build protected solid-state relays.

Features

• Solid-state isolators using Infineon's coreless-transformer technology

• No isolated gate bias supply required for gate driving

• Perfect match for CoolMOS™, OptiMOS™, and TRENCHSTOP™ IGBT

• Low power, large input voltage range from 2.6 V to 3.5 V (internally clamped)

• High-impedance, CMOS input (buffered variants)

• High output voltage up to 18 V - no series or parallel configuration required for powerful gate driving

• High output peak current of 185 µA (direct drive variants) or 400 mA (buffered variants)

• Fast turn-off for safe switches' SOA operation

• Temperature sensor and current sensor protection inputs

• Latch-off in case of a failure event (overcurrent or over-temperature)

• Dynamic Miller clamping protection

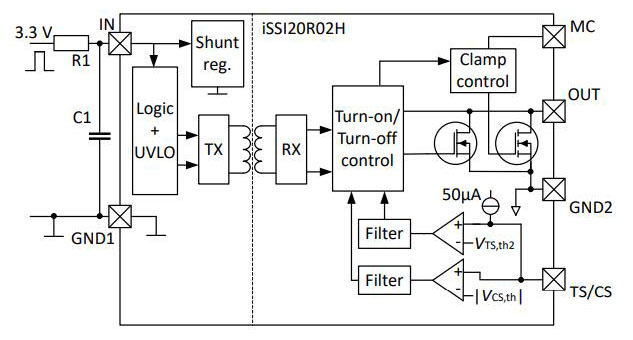

Block Diagram Of ISSI20R02H
