The STM32L4S5QII6 microcontrollers offer higher performance (up to 120MHz) and larger embedded memory (up to 2M bytes of Flash and 640K bytes of SRAM).

The STM32L4+ features richer graphics and connectivity while maintaining best-in-class ultra-low power consumption.The STM32L4+ family breaks through the limits of processing power in ultra-low power applications by delivering 150DMIPS/409 CoreMark performance. The microcontrollers execute from internal flash memory and through embedded 640K bytes of SRAM to enable more advanced consumer, medical and industrial low power applications and devices.

Product Specifications

Product Type: ARM Microcontrollers - MCUs

Family: STM32L4S5QI

Mounting Style: SMD/SMT

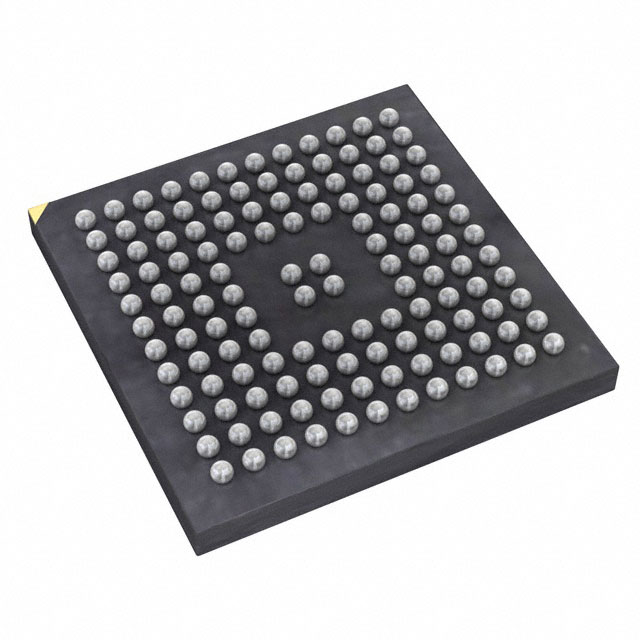

Package / Case: UFBGA-132

Core: ARM Cortex M4

Program memory size: 2 MB

Data bus width: 32 bit

ADC resolution: 12 bit

Maximum clock frequency: 120 MHz

Number of inputs/outputs: 110 I/O

Data RAM size: 640 kB

Supply voltage - min: 1.71 V

Supply voltage - max: 3.6 V

Min. operating temperature: - 40 C

Max. operating temperature: + 85 C

Analogue supply voltage: 1.62 V to 3.6 V, 1.8 V to 3.6 V

DAC resolution: 12 bit

Data Ram type: SRAM

I/O Voltage: 1.08 V to 3.6 V

Interface type: CAN, I2C, LPUART, SAI, SPI, UART, USART, USB OTG FS

Humidity sensitivity: Yes

Number of ADC channels: 16 Channel

Number of timers/counters: 16 Timer

Processor family: STM32L4S5
