The ADuCM420 features a low-power Arm Cortex-M33 processor and a 32-bit Reduced Instruction set computer (RISC) machine that delivers peak performance of up to 240 MIPS via a floating point unit (FPU). The device operates with an on-chip oscillator with a PLL frequency of 160 MHz. The clock can be selectively divided to reduce power consumption.

Parameters

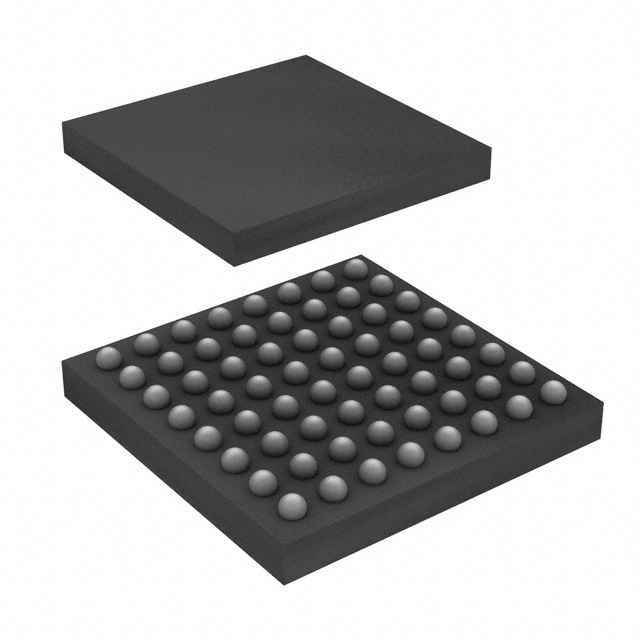

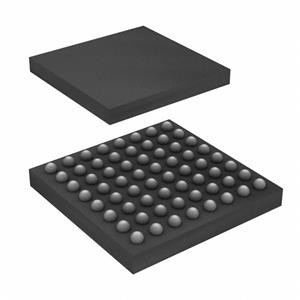

Device: ADUCM420BCBZ

Type: Microcontroller

Core processor: ARM® Cortex®-M33

Kernel specification: 32-bit single-core

Speed: 160MHz

Connection capability: I2C, SPI, UART/USART

Peripheral: DMA, PWM, WDT

Number of I/ OS: 28

Program storage capacity: 512KB (512K x 8)

Program memory type: Flash

EEPROM capacity: -

RAM size: 64K x 8

Voltage - power supply (Vcc/Vdd) : 1.8V ~ 3.6V

Data converter: A/D 12x12b; D/A 12x12b

Oscillator type: Internal

Operating temperature: -40°C ~ 105°C (TA)

Mounting type: Surface mount type

Supplier Device Package: 64-WLCSP (3.46x3.46)

Package/housing: 64-UFBGA, WLCSP

Basic product number: ADUCM420

Applications

• Fiber optic network 100 Gbps/200 Gbps/400 Gbps and higher frequency modules
