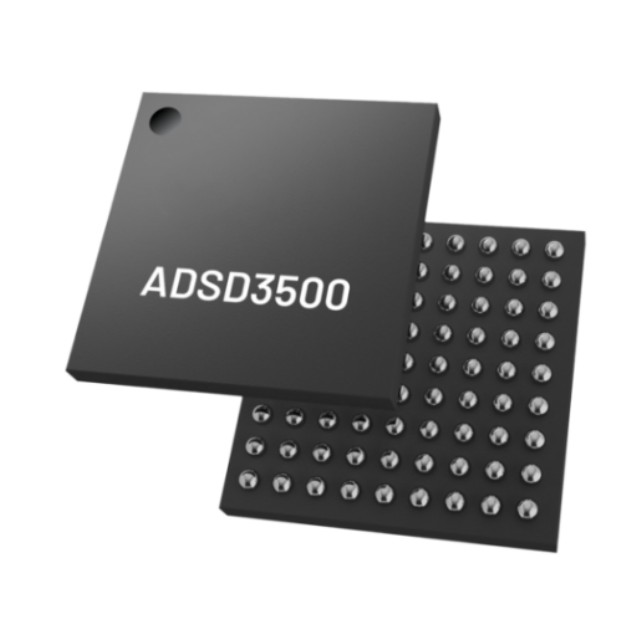

ADSD3500BCBZRL is a Time-of-Flight (ToF) Depth Image Signal Processor (ISP),controls the boot-up of the image sensor module, loading of calibration data, and triggering of frames.

Feature

Depth processor for Analog Devices Time-of-Flight imagers

Full depth processing at 640x480 resolution, up to 90 FPS

Partial depth processing at 1024x1024 resolution, up to 40 FPS

On-chip SRAM for frame buffering & manipulation

Arm Cortex-M33 processor for data flow control

4-lane MIPI CSI-2 receiver interface, 2.5 Gbps per lane

2-lane MIPI CSI-2 transmitter interface, 2.5 Gbps per lane

I2C Master & Slave (1 MHz), I3C Slave (12.5 MHz)

QSPI Master & Slave (40 MHz)

22 GPIO for external connectivity

Crystal oscillator (24 MHz) or external clock (24 MHz, 19.2 MHz)

1.8V I/O supply, 0.8V core supply

3.47mm x 3.47mm WLCSP with 9x9 ball array

Applications

Augmented reality (AR) systems

Robotics

Building automation

Machine vision systems
