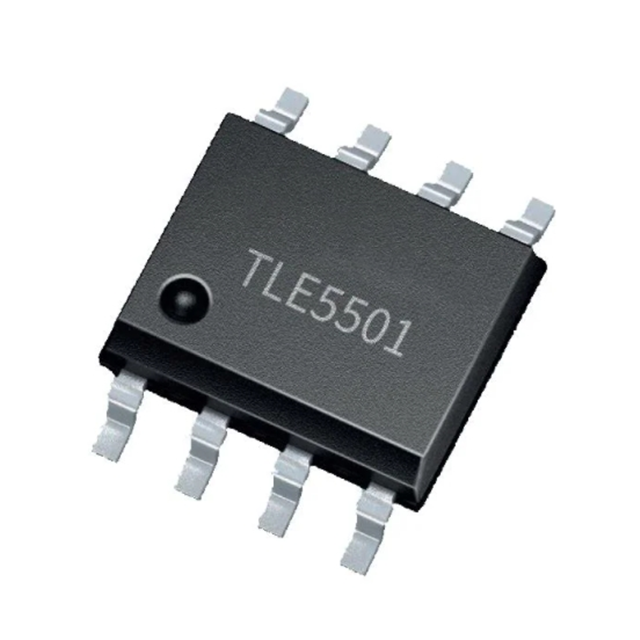

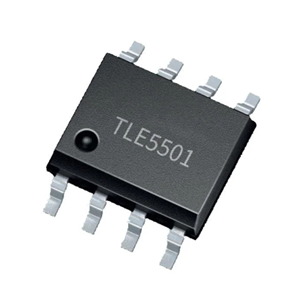

The XENSIV TLE5501 E0001 Magnetic position sensor is a TMR-based analog Angle sensor for any type of angular position detection. The TLE5501 is a 360° Angle sensor that detects the direction of magnetic fields. This is achieved by measuring the sine and cosine angular components using tunnel reluctance (TMR) elements.

Device: TLE5501E0001XUMA1

Type: Position sensor

Applications: Steering Angle detection, BLDC motor commutation (such as wipers, pumps and actuators), angular position detection, automotive safety applications.

Device parameter

For measurement: Angle

Technology: Magnetoresistance

Rotation Angle - Electrical, mechanical: 0° ~ 360°, continuous

Linear range: -

Output: Analog voltage

Output signal: Cosine, Sine

Actuator type: External magnet, not included

Linearity: -

Resistance tolerance: -

Voltage - Power supply: 2.7V ~ 5.5V

Mounting type: Surface mount type

Terminal style: Gullwing

Operating temperature: -40°C ~ 150°C (TA)

Class: Automobile class

Qualification: AEC-Q100

Package/housing: 8-SOIC (0.154", 3.90mm wide)

Supplier device package: PG-DSO-8-16

Basic product number: TLE5501
