Service Telephone:86-755-83294757
Trade Name:Position sensor
Brand:INFINEON
Particular Year:24+
Package:PG-TDSO-16
Delivery Date:New and original
Stock: 2000pcs

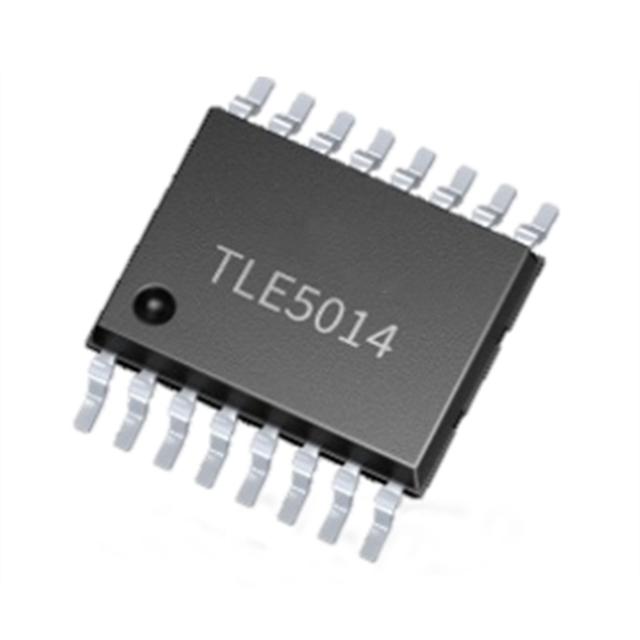

Description: TLE5014SP16DE0002XUMA1 Giant Magnetoresistance (GMR) based Angle sensors focused on steering Angle sensors designed for angular position detection in automotive applications. These sensors feature integrated magnetic field induction, EEPROM, 360° Angle measurement, high voltage and reverse polarity.
Features
Giant magnetoresistance (GMR) principle
Integrated magnetic field induction for Angle measurement
Internal security mechanism, SPFM > 97%
360° Angle measurement
High voltage and reverse polarity function
A 32-point lookup table for correcting system Angle errors
The maximum Angle error over the entire service life and temperature range is 1°
EEPROM for storing configuration and customer-specific ids
The absolute Angle value is represented in 12 bits at the output
Single-chip version according to ISO26262 ASIL C standard
Dual chip version according to ISO26262 ASIL D standard
PWM, SPC, and SENT (based on SAE J2716-2010) interfaces
112 customer ids (programmable)
Meets automotive Q100 standard
4KV (HBM) ESD on the VDD and output pins
RoHS compliant, halogen-free package
Applications
Steering Angle sensor
Pedal position
Motor commutation
Rotor position measurement
Electric Power Steering (EPS)
secure
CARS
Model
Brand
Package
Quantity
Describe
Renesas
16-TSSOP
1000
Inductive position sensors for high-speed motor commutation (automotive)
TI
8-TSSOP
2000
Automotive high-precision analog AMR angle sensor with 360° angle range
INFINEON
PG-TDSO-16
2000
Dual chip AMR and GMR Angle Sensor 5.0V Power supply (with TCO1 Level 12)
INFINEON
PG-TDSO-16
2000
0° ~ 180° reluctance sensor Angle external magnet, excluding gull-wings, PG-TDSO-16
INFINEON
PG-TDSO-16
2000
0° ~ 180° reluctance sensor Angle external magnet, excluding gull-wings, PG-TDSO-16-1
INFINEON
PG-TDSO-16
2000
0° ~ 180° reluctance sensor Angle external magnet, excluding gull-wings, PG-TDSO-16-1
INFINEON
PG-TDSO-16
2000
Magnetic resistance sensor Angle external magnet, gull wing free, PG-TDSO-16
INFINEON
PG-TDSO-16
2000
Magnetic resistance sensor Angle external magnet, gull wing free, PG-TDSO-16
