S28HS02GTFPBHB153 - 2Gbit High-Speed CMOS, MIRRORBIT™ NOR Flash Memory IC

Part Number: S28HS02GTFPBHB153

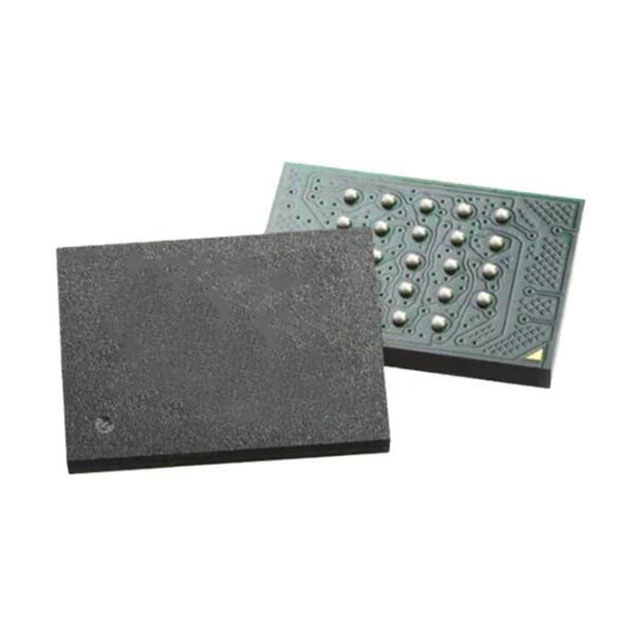

Package: FBGA-24

Type: FLASH - NOR (SLC) Memory IC

Detailed Description: FLASH - NOR (SLC) Memory IC 2Gbit SPI - Octal I/O 166 MHz 24-FBGA (8x8)

Product Overviews

S28HS02GTFPBHB153 is high-speed CMOS, MIRRORBIT™ NOR Flash devices that are compliant with the JEDEC JESD251eXpanded SPI (xSPI) specification. SEMPER™ Flash with Octal interface devices support both the octal peripheral interface (OPI) as well as legacy ×1 SPI. Both interfaces serially transfer transactions reducing the number of interface connection signals. SPI supports SDR, whereas OPI supports both SDR and DDR.

Product Features

• Architecture

- Infineon® 45-nm MIRRORBIT™ technology that stores two data bits in each memory array cell

- Multi-chip package (MCP)

• 02GT Dual die package (DDP) 2  1 Gb die

• 04GT Quad die package (QDP) 4  1 Gb die

- Sector architecture options

• Uniform: Address space consists of all 256 KB sectors

- Page programming buffer of 256 or 512 bytes

- OTP secure silicon array of 1024-bytes (32 x 32 bytes)

 Supply voltage

- 1.7V to 2.0V (HS-T)

- 2.7V to 3.6V (HL-T)

• Grade / Temperature range

- Industrial (-40 °C to +85 °C)

- Industrial Plus (-40 °C to +105 °C)

- Automotive AEC-Q100 grade 3 (-40 °C to +85 °C)

- Automotive AEC-Q100 grade 2 (-40 °C to +105 °C)

- Automotive AEC-Q100 grade 1 (-40 °C to +125 °C)

• Packages

- 24-ball BGA 8  8 mm
