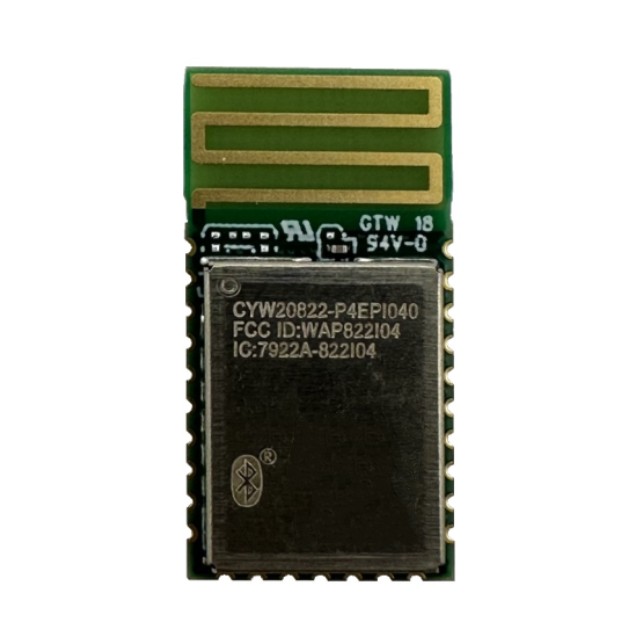

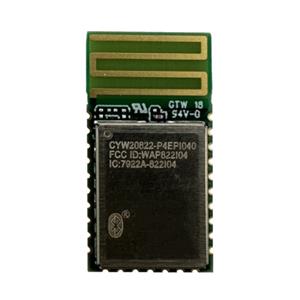

The CYW20822P4EPI040XUMA1 is a fully integrated Bluetooth® low energy wireless module. It includes an on-board crystal oscillator, passive components, Flash memory and CYW20822 silicon.

The CYW20822P4EPI040XUMA1 supports peripheral functions (ADC and PWM), UART, I2C, and SPI communications, and a PDM interface.The CYW20822-P4xxI040 is available in a 20.2 × 10.5 × 2.3 mm package and contains a royalty-free Bluetooth® stack compatible with the Bluetooth® 5.0 core specification.

Product Attributes

Product Category: Bluetooth Modules - 802.15.1

Protocol: Bluetooth 5.0

Interface Type: I2C, SPI, UART

Output Power: 4 dBm

Data Rate: 2 Mb/s

Receiver Sensitivity: - 101 dBm

Frequency: 2.4 GHz to 2.5 GHz

Supply voltage - min: 1.7 V

Supply voltage - max: 3.3 V

Minimum operating temperature: - 40 C

Maximum operating temperature: + 85 C

Antenna: Trace

Core: ARM Cortex M0

Size: 20.2 mm x 10.5 mm x 2.3 mm

Height: 2.3 mm

Length: 20.2 mm

Memory capacity: 128 kB, 1 MB

Humidity Sensitivity: Yes

Mounting Style: SMD/SMT

Operating supply voltage: 1.7 V to 3.3 V

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Receive supply current: 1.3 mA

Transmit supply current: 3 mA

Trade Name: AIROC

Width: 10.5 mm
